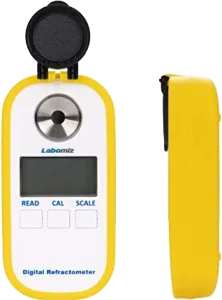

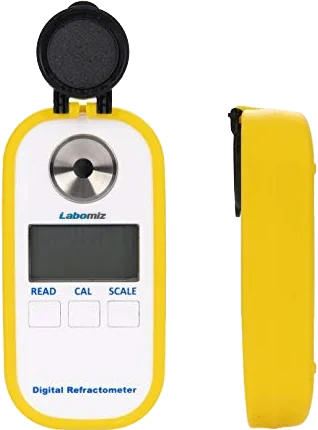

Portable refractometer MPOR-2A
Model: MPOR-2A · Category: Refractometers
Portable brix refractometer MPOR-2A is a microprocessor controlled pocket sized optical instrument that provides instant measurement readings. Automatic temperature compensation (ATC) eliminates temperature corrections between 0 °C to 40 ℃. Automatic power off post one minute of last operation prolongs it’s battery life. Ideal for determining brix concentration of fruits, beverages, oils and organic solvents.
Specifications
| Brix range | 0.0 ~ 50 % |
|---|---|
| Refractive index | 1.3330 nD ~ 1.4200 nD |
| Brix resolution | 0.001 |
| Refractive index resolution | 0.0001 nD |
| Temperature | 0 °C ~ 50 °C |
| ATC | 0 °C ~ 40 °C (32°F ~ 104°F) |
| Brix accuracy | ± 0.2 % |
| Refractive index accuracy | ± 0.0003 nD |
| Battery | 1.5 V |
| Dimensions | 121 × 58 × 25 mm |
| Weight | 90 g |
Features
| Microprocessor controlled |
| LCD screen to display measurement data in one view |
| Three scales of measurement |
| Standardized Brix scale for easy read and accuracy |
| Automatic and zero calibration with distilled or tap water |
| Abrasion and corrosion-resistant coating on sapphire prism |
| Automatically turns off after 1 minute of non-use |
Applications
Used for measuring concentration of sugar in the food and beverage industry, laboratories, research institutes, brewing industry, agriculture, etc.
