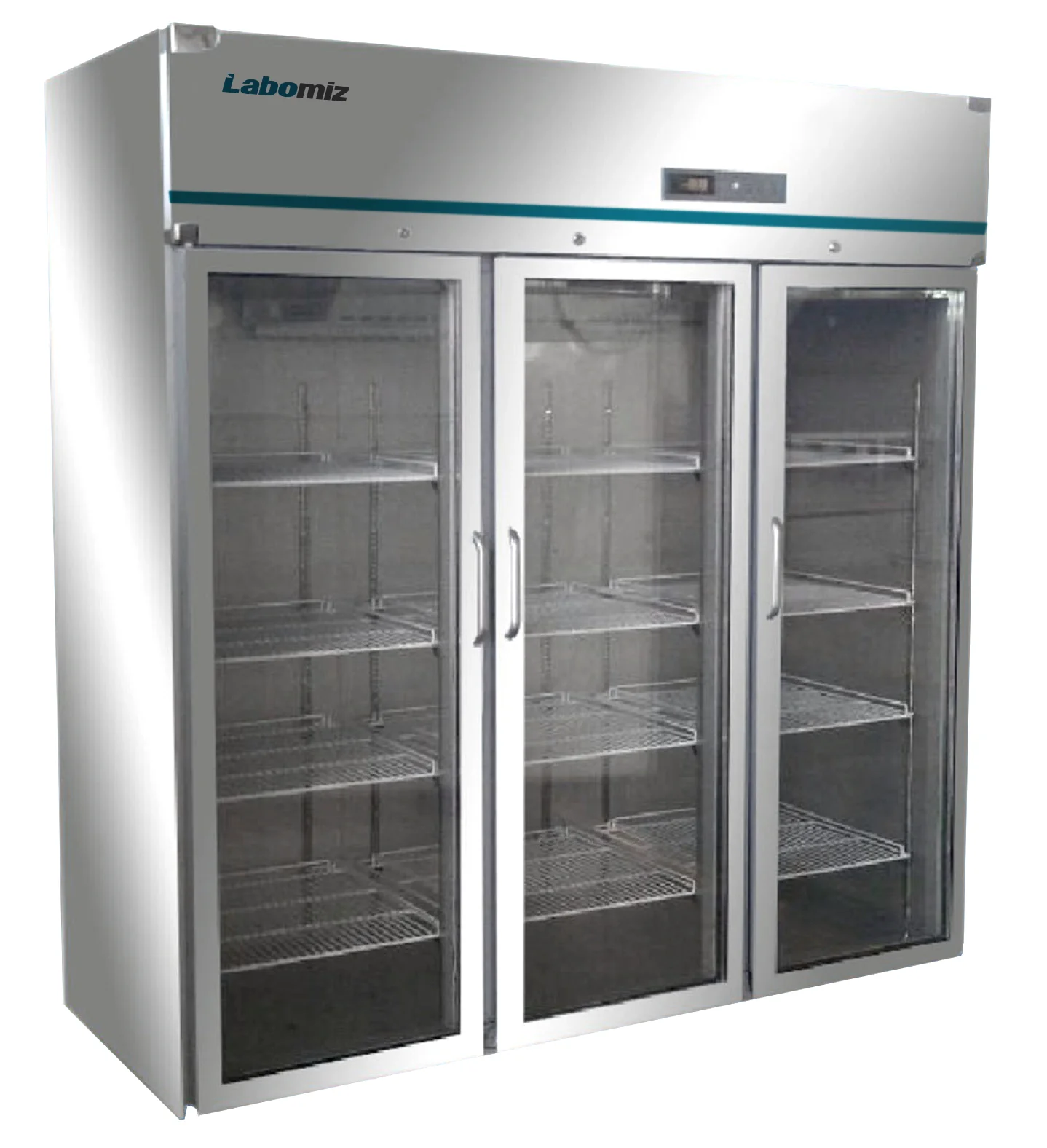

Pharmacy refrigerator MPHAR-2I
Model: MPHAR-2I · Category: Refrigerators
Pharmacy refrigerator MPHAR-2I is an upright triple glass door refrigeration unit with electronic temperature controller. Automated defrost cycles facilitate frost-free storage interiors. Polyurethane insulation with magnetic seal rings ensures low energy consumption. System alarms include temperature limits, door ajar, low voltage and power off conditions. Secured with digital password to avert unauthorized user access. Stainless steel plated exteriors and interiors promote long-term corrosion resistance increasing durability.
Specifications
| Storage capacity | 1500 L |
|---|---|
| Wire shelves | 12 |
| Exterior dimensions | 1800 × 775 × 1965 mm |
| Interior dimensions | 1710 × 684 × 1325 mm (approx.) |
| Temperature | 2 °C ~ 8 °C |
| Ambient temperature | 10 ℃ ~ 32 ℃ |
| Temperature sensor | NTC |
| Refrigerant | R600a |
| Evaporator | Copper tube aluminum fin |
| Condenser | Tube type |
| Noise | 52 dB |
| Power consumption | 5.75 kWh |
| Power supply | 195 V ~ 230 V / 50 Hz ; 3.8 A |
| Power | 110 W |
| Weight | 158 kg |
Features
| Storage capacity: 1500 L |
| CFC-free rapid fan cooling technology |
| Digital control panel for temperature monitoring and alarms |
| Temperature range : 2 °C ~ 8 °C |
| Interior cabinet LED lighting |
| Automatic charging for power back up |
| Durable casters for mobility |
| Network accessibility via USB interface |
Applications
Used in diagnostic laboratories, clinical pathology laboratories for standardized storage for pharmaceutical drugs, ampules, low-risk routine vaccines, used for research applications.
Optional Modules
| Module No | Module Name |
|---|---|
| ATR-10 | Temperature Recorder |
| TH-10 | Test Hole |
