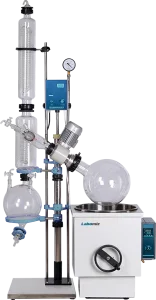

Large capacity rotary evaporator MLCRE-1B
Model: MLCRE-1B · Category: Rotary Evaporators
Large capacity rotary evaporator MLCRE-1B features an efficient vacuum pump and comprises a double condenser that allows 95% of collection and facilitates smooth distillation. With a rotary flask having the capacity of 20 L , this instrument can process large amount of the sample. The rotating speed from 0 to 140 rpm enables proper evaporation, mixing and extraction of the solvent.
Specifications
| Rotary flask | 20 L |
|---|---|
| Collecting flask | 10 L |
| Rotating speed | 0 rpm ~ 140 rpm |
| Evaporation speed | > 5 L/h |
| Condenser cooling surface | 1 m2 |
| Motor power | 120 W |
| Vacuum degree | ＜133 pa |
| Sealing mode | PTFE Sealing System |
| Water bath configuration | Water bath lifting |
| Water bath power | 5 kW |
| Static temperature control range | 0 ℃ ~ 99 ℃ |
| Temp fluctuation/ resolution | ±1/1 ℃ |
| Condenser | Vertical Double Condenser |
| Voltage | 220 V; 50 Hz |
Features
| EL-gas tight system with high vacuum degree |
| Gas liquid separator and no reflux |
| Double condenser with a collection rate over 95% |
| Continuous feeding is available |
| Water bath, intelligent PID temperature controller, can be lifted up and down |
| Stainless steel and aluminum die casting for mechanical parts |
| Glass parts are made of borosilicate glass |
| Explosion proof system |
Applications
| No. | Item |
|---|---|
| 1 | Used for the distillation, evaporation of heat labile material’s condensation, crystallization, separation and recovery. |
