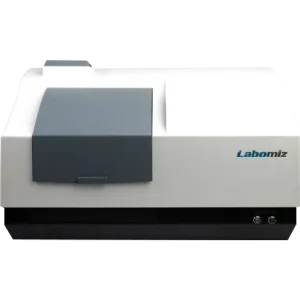

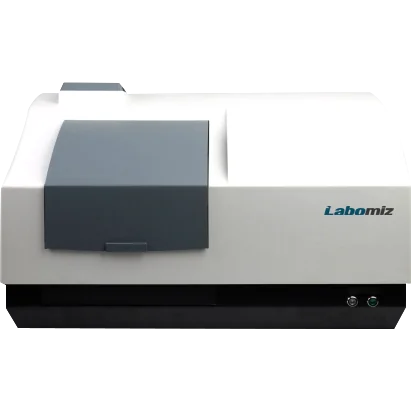

Fluorescence Spectrophotometer MFLS-1C
Model: MFLS-1C · Category: Spectrophotometer
Fluorescence spectrophotometer MFLS-1C is a high-performance molecular luminescence analysis equipment designed for high performance, with high signal to noise ratio, ultra-high scanning speed, ultra-high resolution, ultra-high wavelength accuracy and a variety of accessories.
Specifications
| Excitation Source | 150W xenon lamp |
|---|---|
| Excitation and Emission Wavelength | 200nm~900nm |
| Excitation and Emission Slit | lnm/2nm/5nm/10nm/20nm |
| Wavelength Accuracy | ±0.4nm |
| Wavelength Repeatability | <0.2nm |
| Signal-to-Noise Ratio | S/N>350(P-P) S/N>1500(RMS) S/N>15000(RMS BG) |
| Limit | ≤ 5 × 10-11 g /ml（Quinine Sulfate Solution） |
| Linearity | y>0.995 |
| Peak Repeatability | <1.5 % |
| Wavelength Scan Speed | Multi-speed Level, Maximum at 60000nm/min |
| Minimum sample size | 0.5mL (Using a standard 10mm square sample cell) |
| Octave filter | Build in |
| Photometric Quantity Range | -9999 ~ 9999 |
| Response Time | 0.02/0.1/0.5/1/2/4/8 s, Auto adjust |
| Data Transportation | USB2.0 |
| Power | 200W |
| Dimension | 610x460x365 mm |
| Gross Weight | 26kg |
Features
| Quantum yield accessory is available |
| Horizontal slit optical design, with excellent luminous detection efficiency and high signal to noise ratio |
| Water Raman peak SNR better than 350: 1 (P-P) or 1500: 1 (RMS) |
| The minimum sample volume is 0.5mL when using a standard 10mm square sample cell |
| Wavelength scanning speed up to 60000 nm / min |
| Bandwidth 1/2/5/10/20nm adjustable |
| Fluorescence Quantum Yield accessory available |
| The software offers fluorescence 3D scanning, equal-wavelength difference synchronous scanning, equal wave number difference (constant energy difference) synchronous scanning functions |
| Multi accessories |
| Using high quality Xenon light source and photoelectric multiplier tube detectors and instruments to provide sufficient light intensity signal and the detection sensitivity |
| Built-in frequency filter. Built-in optical gate, designed for unstable sample. |
Applications
Used in material research, drug analysis, biochemical and clinical testing, water quality control, food safety testing and other areas of qualitative and quantitative analysis and scientific research.
Optional Accessories
| Accessory No. | Accessory Name |
|---|---|
| 1 | Multi- function fluorescent sample rack holder |
| 2 | Base of other sample racks. |
| 3 | Membrane sample rack |
| 4 | Powder sample rack |
| 5 | Sample cell jacket |
| 6 | 200 µL micro centrifuge tube accessory |
| 7 | Up conversion fluorescent accessory |
| 8 | Fluorescence Quantum Yield accessory |
