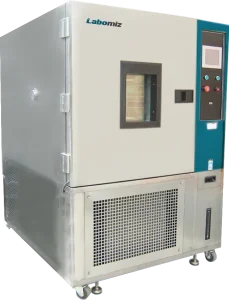

Constant Temperature and Humidity Test Chamber MCTH-1B
Model: MCTH-1B · Category: Test Chambers
Constant Temperature and Humidity Test Chamber MCTH-1B is a microprocessor controlled unit for simulation of constant climatic conditions. The heat, cold, dryness and humidity endurance ensures accurate condition maintenance. The compact fluorescent lamp internal bulbs provide better visual assistance. Compressor overload switch and refrigerant high and low pressure protections ensure safe operation.
Specifications
| Temperature range | 0 °C ~ 150 °C |
|---|---|
| Humidity range | 20 % ~ 98 % |
| Heat up time | 4 °C / min |
| Cool down time | 1 °C / min |
| Temperature uniformity | ± 2.5 °C |
| Temperature accuracy | 0.1 °C |
| Humidity control accuracy | ± 0.1 % ± 2.5 % |
| Dimensions (Inner chamber) | 50 × 60 × 50 cm |
| Dimensions (Outer body) | 105 × 175 × 108 cm |
| Weight | 220 kg |
Features
| Capacity: 150L |
| Digital LCD screen for visual monitoring of data |
| Operational buttons for ease of accessibility |
| Humidity over temperature protection switch |
| Wet and dry bulb gauge |
| Malfunction indication by warning system |
| Tempered glass observation window |
| Anti-corrosive stainless steel structure |
Applications
Used for the conditioning of many products prior to testing in quality control, electrical equipment, automobiles, metals, foodstuffs, chemistry, infrastructural materials, etc.
