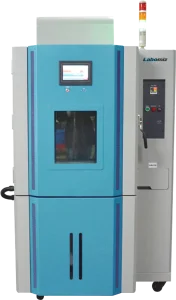

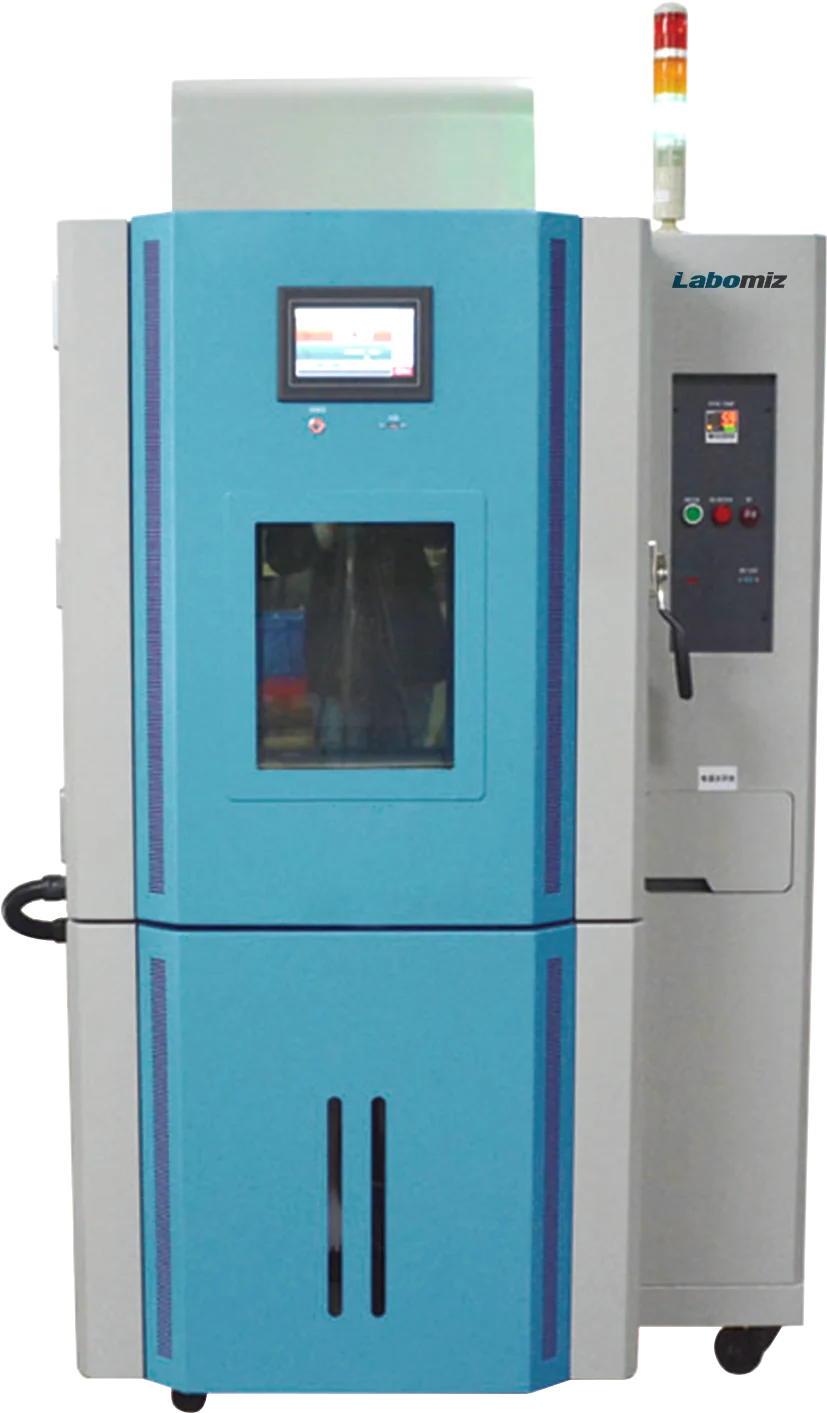

Environmental stress screening test chamber MESS-1B

Name: Environmental stress screening test chamber MESS-1B
Brand: Labomiz
SKU: MESS-1B

Model: MESS-1B · Category: Test Chambers

Environmental stress screening test chamber MESS-1B is a 408 L test chamber equipped with a wide range of temperatures ( -70 °C to 100 °C ). It comprises of a 3 level overheating protection device designed to meet comprehensive test conditions of temperature to test product defects and production flaws.

Specifications

Chamber capacity	408 L
Temperature change rate	10 °C / min
Interior dimension ( W x H x D )	800 x 850 x 600 mm
Exterior dimensions ( W x H x D )	1400 x 2050 x 1600 mm
Temperature range	( -70 °C to 100 °C )
Rapid temperature change	( -55 °C to 85 °C )
Control system	Full linear control
Constant temperature	± 0.5 °C
Temperature deviation	± 3.0 °C
Compressor	Semi-hermetic compressor
Cooling mode	Water cooled
Cooling system	Balanced Temperature & Humidity control system
Heater	Iron-chrome wire heater
Blower	Centrifugal blower
Temperature sensor	Pt100 Platinum resistance thermometer sensor
Controller	Touch screen programmable controller
Ambient temperature	8 °C to 35 °C
Power supply	AC 380 V ± 10 % 50 Hz
Exterior material	Cold-rolled steel sheet ( Rust proof & Plastic spray treated )/ Stainless steel
Interior material	Stainless steel plate ( SUS 304 ）
Insulation material	Rigid polyurethane foam and glass wool
Observation window	Glass incorporating heat generator
Weight	1500 kg

Features

Wide temperature range ( -70 °C to 100 °C )

Standard refrigeration system ( semi-hermetic compressor )

Touch screen interface panel

2 access cable ports

3 level overheating protection device

High testing precision

Large observation window

Water and electricity separation design

Applications

Used to detect production flaws by military, aerospace industry and electronic manufacturers to determine environmental adaptability and service life of a product
