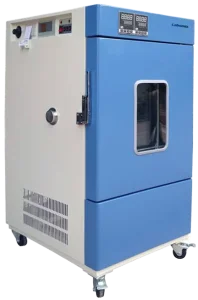

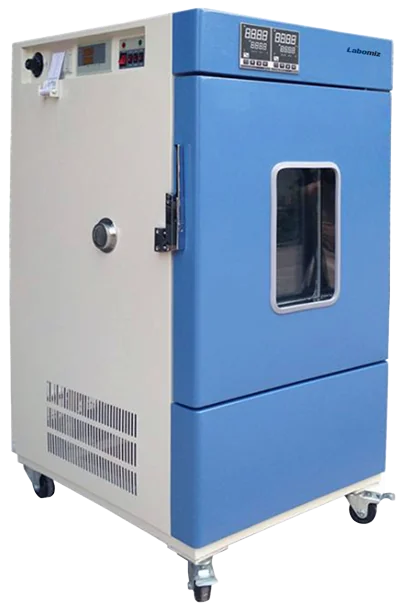

Pharmaceutical stability test chamber MSTC-1D
Model: MSTC-1D · Category: Test Chambers
Pharmaceutical stability test chamber MSTC-1D is a 2000 L chamber configured to facilitate quick stability tests with uniform temperature control. It is equipped with an audio-visual temperature/ humidity deviation alarm with a remote door or SMS alarm system.
Specifications
| Chamber capacity | 2000 L |
|---|---|
| Loading clapboard layers | 7 |
| No. of compressors ( Set ) | 4 |
| Interior dimension ( W x H x D ) | 1200 x 1100 x 1500 mm |
| Exterior dimensions ( W x H x D ) | 1760 x 1260 x 2100 mm |
| Temperature range | 18 ℃ to 65 ℃ 0 ℃ to 80 ℃ |
| Constant temperature | 0.5 ± ℃ |
| Temperature deviation | 1.0 ± ℃ |
| Humidity range | 15 % to 95 % R.H |
| Humidity deviation | 3 % ± R.H |
| Power | 1.2 kW |
| Power supply | AC 220 V 50 Hz |
| Weight | 480 kg |
Features
| Acid and corrosion resistant |
| Autonomous over-temperature protection with automatic defrosting function |
| Storage tank in interior chamber |
| Refrigeration compressor unit |
| One key release lifting or removing of pharmaceutical specimens |
| Condensed wastewater recycled ( energy and water saving ) |
| High quality polymer temperature and humidity sensors |
| Audio-visual temperature/humidity deviation alarm |
| Lock and key door for safekeeping of samples |
Applications
Used in the pharmaceutical, cosmetics, neutraceuticals and medical device industry for testing shelf-life, packaging, long-term stability and storage ability of drugs or other pharmaceutical substances.
