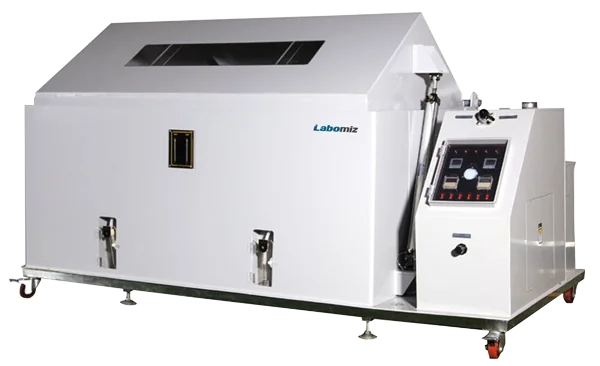

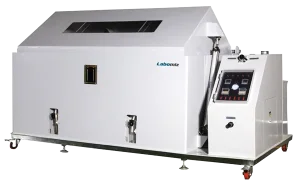

Salt spray chamber MSSC-1B
Model: MSSC-1B · Category: Test Chambers
Salt spray chamber MSSC-1B is a 270 L chamber designed for corrosion testing. It comprises of a saline fog environment with a temperature range from (35 °C to 50 °C) and transparent angled (110º to 120º) chamber which allows easy observation of sample spraying condition and prevents contact of condensate with sample.
Specifications
| Chamber capacity | 270 L |
|---|---|
| Interior dimensions (W x H x D) | 900 x 500 x 600 mm |
| Exterior dimensions (W x H x D) | 1460 x 1280 x 910 mm |
| Temperature range | 35 °C ± 1°C to 50 °C ± 1°C |
| Heater power | 7 kW + 0.75 kW |
| Air compressor | 1/ 2 HP |
| Power supply | AC 220 V 50 Hz |
| Weight | 80 kg |
Features
| Acrylic glass spray nozzle ( optimum spray distribution ) |
| Quartz glass fired nozzle ( miniscule spray mist ) |
| Glass fiber protected interior and exterior chamber with epoxy integral molding ( corrosion and leakage resistant ) |
| Tower spraying system charged with salt solution filtration system |
| 110 ° to 120 ° angled transparent chamber top |
| Water sealing between chamber top and cabinet ( no salt spray overflow ) |
| Water level and temperature protection system |
| Economic arrangement of control panel and display instruments |
| Corrosion and temperature resistant material |
| Recyclable PVC assembly |
Applications
Used to assess corrosion resistance of metal fittings, protective coatings, in tests like NSS, ACSS, CASS, CORK, in automotive, military, medical and maritime sectors
