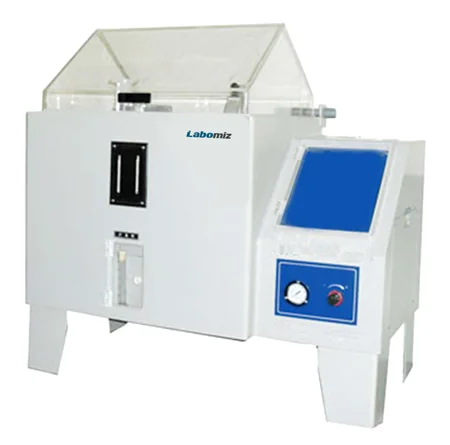

Salt spray chamber MSSC-1D
Model: MSSC-1D · Category: Test Chambers
Salt spray chamber MSSC-1D is a PID temperature controlled titanium tube heating system with corrosion resistant temperature probe for anti-corrosive oil resistance assessment. The characteristic quartz glass nozzle inhibits crystallization for a long period of time.
Specifications
| Chamber capacity | 108 L |
|---|---|
| Interior dimensions (W x H x D) | 600 × 450 × 400 mm |
| Exterior dimensions (W x H x D) | 1340 × 2880 × 1520 mm |
| Temperature range | 35 °C ~ 50 °C |
| Saltwater tank capacity | 15 L |
| Saturation temperature | 47 °C ~ 63 °C |
| Spray settlement | 1.0 ml/h.80 cm2 ~ 2.0 ml/h.80 cm2 |
| Power supply | AC 220 V ± 10 %; 50 Hz ± 10 % |
| Weight | 510 kg |
Features
| Digital LCD screen for visual monitoring |
| Multi-function timer accessible with power failure memory function |
| Conical diffuser in spray tower to maintain uniform fog volume |
| Automatic and manual water addition function for uninterrupted operation |
| Automatic power cut-off in case of over temperature or heating failure |
| Low water indication to prevent excess pressure or burning of the water tank |
| Seamlessly welded stainless steel pressure tank |
| Transparent acrylic sheet cover for better visualization |
Applications
Used in experimental labs, oil refineries, petrochemical industries, chemical industries, paint and lubricants industries, etc.
Standard Accessories
| Sr. No. | Name of the accessory | Quantity |
|---|---|---|
| 1 | Spray | 1 |
| 2 | Shelves | 4 |
| 3 | Glove stick | 6 |
| 4 | Standard cylinder | 1 |
| 5 | Temperature indicator | 2 |
| 6 | Collector | 1 |
| 7 | Glass nozzle | 1 |
| 8 | Defogging group | 1 |
| 9 | Cup | 1 |
