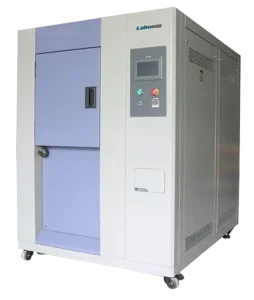

Three-zone thermal shock test chamber MTWC-3A
Model: MTWC-3A · Category: Test Chambers
Three-zone thermal shock test chamber MTWC-3A is equipped with a hot, cold and a central ambient temperature zone. The hot and cold air is sequentially directed into the ambient zone to provide the thermal shock. It provides a thermal shock range from (-65 °C to 150 °C ) used in the industrial sector to test for environmental adaptability.
Specifications
| Chamber capacity | 101 L |
|---|---|
| Low temperature chamber range | ( -80 °C to -10 °C ) |
| High temperature chamber range | 60 °C to 200 °C |
| Test chamber temperature range | ( -65 °C to 150 °C ) |
| Low temperature exposure time | 30 mins |
| High temperature exposure time | 30 mins |
| Recovery time | 5 mins |
| Ambient temperature | 5 °C to 35 °C |
| Pre-cooling time ( within 60 min ) | 20 °C to -80 °C |
| Pre-heating time ( within 20 min ) | 60 °C to 200 °C |
| Temperature accuracy | 0.1 % of F.S ± 1 digit |
| Temperature input | pt-100 V DCV |
| Humidity accuracy | 0.1 % of F.S ± 1 digit |
| Humidity input | pt-100 V or 5 V DCV |
| Refrigeration system | Water Cooled |
| Refrigeration stage | Cascade stage refrigeration system |
| Refrigerant | CFC free refrigerant |
| Compressor | Semi-hermetic compressor |
| Screen panel controller | 7-inch LCD touch screen |
| Operation mode controller | Program or setting |
| Memory capacity | 120 programs 1200 steps All repeat 999 cycles Part repeat 99 cycles |
| Interior material | Stainless steel plate ( SUS304 ） |
| Exterior material | Baked painting steel or stainless steel ( SUS304 ) |
| Insulation material | Rigid polyurethane foam and glass fiber wool |
| Power supply | AC 380 V ± 10 % 50 Hz |
| Interior dimensions | 500 x 450 x 450 mm |
| Exterior dimensions | 1540 x 1840 x 1700 mm |
| Weight | 10 kg |
Features
| Individually controlled zones ( hot, ambient and cold temperature zones ) |
| Unique cool and heat storage |
| Automatic defrosting technology |
| Heat exchanger |
| PC and touch screen controller connection ( software implementation ) |
| CFC free refrigerant ( HFC-404 and HFC-23 ) |
| Safety protection measures ( alarm indication ) |
| Display of failure cause and troubleshooting |
| PC remote monitoring computer ( optional ) |
Applications
Used in research, pharmaceutical and chemical industries for stress screening to assess products for their environmental adaptability and to test for product flaws
Standard Accessories
| Accessory No | Accessory | Units |
|---|---|---|
| 1 | Cable port | 1 |
| 2 | Shelves | 2 |
Safety Devices
| Safety Device No | Safety Device |
|---|---|
| 1 | No fuse breaker |
| 2 | Compressor over pressure / Heat / Current / Temperature protection |
| 3 | Fan overload protection |
| 4 | Safety fuse |
| 5 | Dry combustion protector |
| 6 | Water shortage protection |
