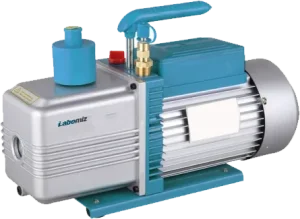

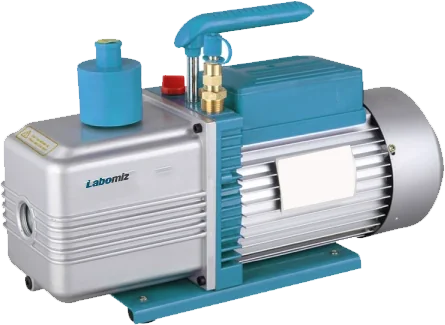

Double Stage Rotary Vane Vacuum Pump MLDSP-1G
Model: MLDSP-1G · Category: Vacuum Pump
Double Stage Rotary Vane Vacuum Pump MLDSP-1G is particularly configured for pumping air from sealed vessels. It offers even, pulse-free air flow, big preliminary torque design that produces less noise or vibrations and is maintenance free. The vacuum pump is equipped with efficient air cooling system. It can also be used as fore-pump, diffusion pump or molecular pump.
Specifications
| Pumping speed | 396 L/min, 339L/min |
|---|---|
| Ultimate Pressure | 3 × 10-1 Pa |
| Rotating Speed | 1720 / 1440 rpm |
| Oil Capacity | 500 ml |
| Power Supply | 110 V, 60 Hz / 220 V, 50 Hz |
| Dimension | 430 × 142 × 280 mm |
| Weight | 18 kg |
Features
| High pumping speeds with small dimensions |
| Oil-anti-suck back device for convenient starting |
| Compact, reliable and powerful |
| Space-saving and ideal for systems integration |
| Gas ballast valve enables pump-down of water vapor and other process vapors |
| Eco-friendly exhaust gas free of oil mists |
| Efficient air cooling system |
| Quiet, low-vibration operation |
| Easy to maintain |
Applications
Double stage rotary vane vacuum pump can be used in food packaging, scientific and medical treatment, electronic chemical and medical research laboratories.
