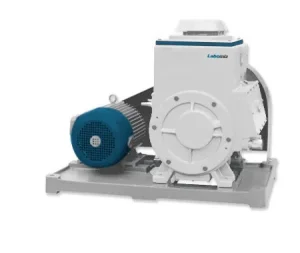

Belt Drive Vacuum Pump MBDVP-1E
Model: MBDVP-1E · Category: Vacuum Pump
Belt Drive Vacuum Pump MBDVP-1E is equipped with highly durable vacuum pump assembled for pumping air from sealed vessels. It provides ultimate vacuum pressure of ≤ 1Pa.The robust design and high end vacuum makes this belt driven vacuum pump powerful system. It can be used as a stand-alone machine or as a fore-pump, process pump or titanium pump of booster pump, oil diffusion pump and molecular pump.
Specifications
| Pumping Speed | 4200 L / min |
|---|---|
| Ultimate Pressure | ≤ 1 Pa |
| Oil Capacity | 4.2 L |
| Rotating Speed | 420 rpm |
| Temperature of Body | ≤ 40 °C |
| Ambient Temperature | 7°C ~ 40 °C |
| Noise Level | ≤ 86 dB |
| Weight | 338kg /320 kg |
| Dimension | 910 x 650 x 700 mm |
| Power | 5500 W |
| Power Supply | 220 V, 50 Hz |
Features
| Belt driven type vacuum pump |
| Robust design |
| Ultimate vacuum pressure of ?1Pa |
| High end vacuum |
| Easy to use and maintain |
| Highly durable and powerful |
| Quiet, low-vibration operation |
Applications
Belt Drive Vacuum Pump can be used for vacuum coating, vacuum filtering, vacuum heat treatment, vacuum smelting, vacuum tube, refrigeration, packing etc.
