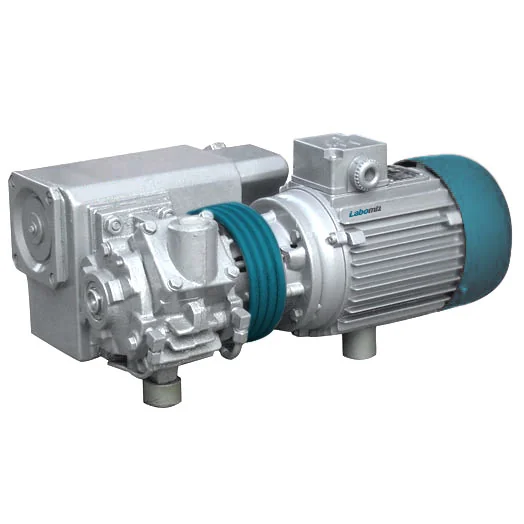

Rotary Vane Vacuum Pump MLRVP-1E
Model: MLRVP-1E · Category: Vacuum Pump
Rotary Vane Vacuum Pump MLRVP-1E is designed with unique lubrication system, built-in oil pump and with a large oil volume capacity ranging from 0.5L to 4.0L. In addition to providing smooth, pulse-free air flow, these oil sealed rotary displacement pump are compact and easy to install and operate, have low starting and running torque requirements, produce minimal noise or vibrations and are capable of long, service-free life.
Specifications
| Pumping Speed | 1666.67 L / min |
|---|---|
| Ultimate Pressure | 50 Pa |
| Oil Capacity | 4 L |
| Rotating Speed | 1420 rpm |
| Inlet and Outlet | G 11 / 4 inch |
| Weight | 115 kg |
| Dimension | 770 x 480 x 300 mm |
| Power | 2200 W |
| Power Supply | 220 V, 50 Hz |
Features
| Space-saving and ideal for systems integration |
| High pumping speeds with small dimensions |
| Gas ballast valve to pump little water vapor |
| Oil-anti-suck back device for convenient starting |
| Efficient air cooling system |
| Eco-friendly exhaust gas free of oil mists |
| Compact, reliable and powerful and easy to maintain |
| Quiet, low-vibration operation |
Applications
| No. | Item |
|---|---|
| 1 | These rotary vane vacuum pumps are used in the vacuum packaging, drying, distillation, plastic and other industries. |
