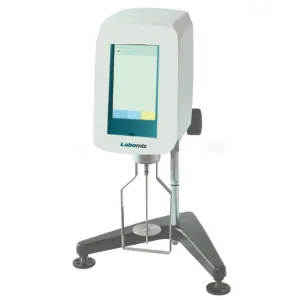

Touch screen viscometer MTSV-3D
Model: MTSV-3D · Category: Viscometers
Touch screen viscometer MTSV-3D is a bench-top unit with a touch panel for easy control of system parameters. Six rotors are available with the unit, for varying application. Control panel displays parameter such as Viscosity, temperature, dynamic viscosity, density, torque, shear rate and rotor speed. Real time trend display for user interpretation.
Specifications
| Measurement range | 800 mPa.s ⁓ 32000 mPa.s |
|---|---|
| Rotor speed | 0.1 rpm ⁓ 200 rpm step-less speed change 2000 rpm rotating speed steps |
| Sample Consumption | 500 ml |
| Rotors | 6 types ( R2, R3, R4, R5, R6, R7 ) |
| Measurement error | ≤ ± 1 % ( F.S ) |
| Weight linearity | ± 0.5% |
| Power supply | 110 V ⁓ 220 V 60 Hz ⁓ 50 Hz |
| Data storage | 30 set data |
| Dimensions | 300 × 300 × 450 mm |
| Weight | 4 kg |
Features
| Aluminum alloy case ( Resistance to corrosion ) |
| Five inch color touch screen panel |
| Auto display of maximum measuring range |
| Density value displays kinematic viscosity |
| Automatic scan recommends rotor and speed |
| Provision to store data for user interpretation |
| Triangular base and single column |
Applications
Used to measure viscosity of fluids, including paints, cosmetics, inks, paper, food, oil, starch, solvent-based adhesive, biochemical products and other industries.
Optional Accessories
| No. | Item |
|---|---|
| 1 | Rotors ( R0, R1 ) |
| 2 | Constant temperature circular bath |
| 3 | Temperature probe |
| 4 | Viscosity standard liquid |
| 5 | Glass jacket cup |
| 6 | Software |
| 7 | Printer |
