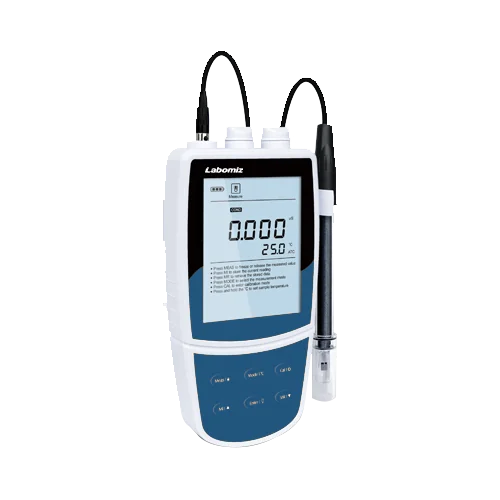

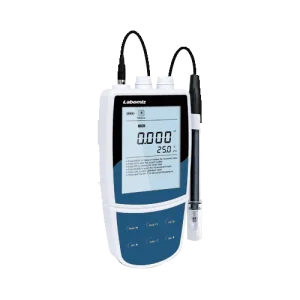

Portable Conductivity Meter MPCM-1A
Model: MPCM-1A · Category: Water Testing
Portable Conductivity meter MPCM-1A is a convenient package that includes a highly accurate waterproof multi-ranging conductivity meter that measures 2 different parameters including Conductivity and Temperature using the conductivity meter's single electrode. The portable conductivity meters were designed to be easy to use in harsh environment.
Specifications
| Conductivity |
| ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Temperature |
| ||||||||||||||||||||||
| Temperature compensation | 0 to 100 °C, 32 to 212 ° F, Manual or Automatic | ||||||||||||||||||||||
| Temperature coefficient | Linear | ||||||||||||||||||||||
| Reference temperature | 25 °C | ||||||||||||||||||||||
| Stability conditions | Low or high | ||||||||||||||||||||||
| Cell constant | K= 0.1, 1, 10 or custom | ||||||||||||||||||||||
| Calibration due | 1 to 31 days or off | ||||||||||||||||||||||
| Memory | 100 data sets | ||||||||||||||||||||||
| Data hold | Manual or auto-end point | ||||||||||||||||||||||
| Connector | 6 pin mini plug | ||||||||||||||||||||||
| Power Control | Manual or Automatic (10, 20 or 30 minutes after last key pressed) | ||||||||||||||||||||||
| Power | 3 × 1.5 V AA batteries or DC 5 V power adapter | ||||||||||||||||||||||
| Dimension (L × W × H) | 170 × 85 × 30 mm | ||||||||||||||||||||||
| Weight | 300 g |
Features
| Familiar features |
| Calibration due reminder informs operator to calibrate the meter regularly |
| Stability indicator displays the status of current measurement |
| Auto hold function freezes stable, ?nal readings for better viewing and recording |
| 1 to 3 points push button calibration to automatically identify calibration solutions |
| Selectable temperature units (°C or °F) for different application requirements |
| Expanded memory stores and recalls up to 500 readings |
| Calibration report provides details of calibration standard and cell constant |
| Help message as an operational guide, helps users for quick access to the parameters |
| Reset function automatically resumes all settings back to factory default options |
| Store data is transferrable into computer via USB communication interface |
| Exceptional features |
| Conductivity: 1 to 3 point calibration with automatically identification of calibration solutions |
| Temperature: Can select cell constant (0.1/1/10) and normalization temperature 25°C |
| Linear compensation improves the measurement accuracy |
Applications
Used for quality testing of water on different parameters in research and development labs, water resources and plants in nearby or remote area.
