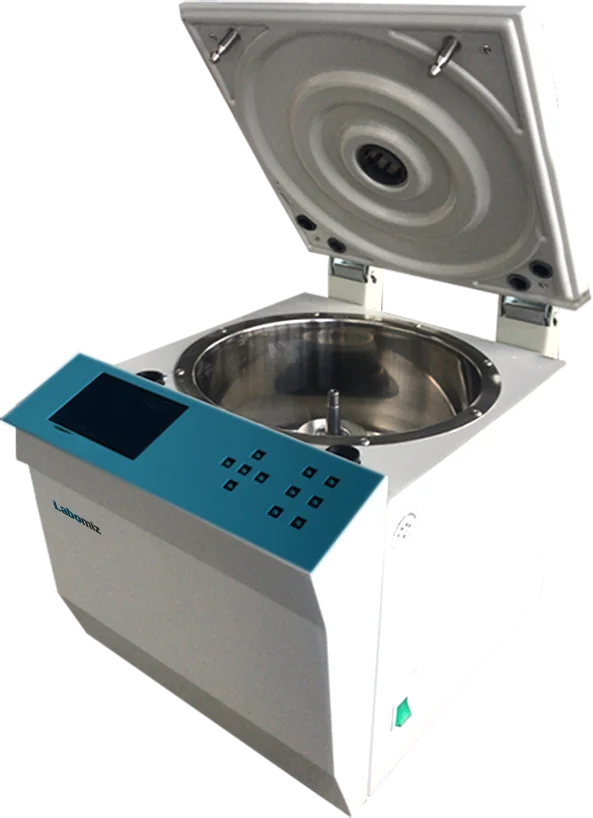

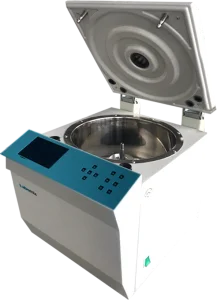

High speed centrifuge MHSC-2A
Model: MHSC-2A · Category: Centrifuges
High speed centrifuge MHSC-2A is a microcomputer controlled unit that performs a wide range of separation, offering comprehensive control and set-up options to meet your precise application needs. Electric door locks that provide more safety. The centrifugation parameters can be changed during the process without stopping the machine. It features a unique design for air exhaust temperature and have a double synchronous display screen.
Specifications
| Max speed | 18000 rpm |
|---|---|
| Max RCF | 23846 x g |
| Speed accuracy | ± 100 rpm |
| Noise | ≤ 55 dB |
| Time range (hh:mm:ss) | 1 min ̴ 99 : 99 : 59 |
| Temperature indicators | ≤ 8 ° C |
| Power supply | AC 220 V , 50 Hz |
| Power | 250 VA |
| Dimensions | 460 x 315 x 335 mm |
| Weight | 29 kg |
Features
| Microcomputer controlled system with LCD screen |
| Nine ascending and descending rate selection mode |
| Ten working mode options |
| Two optional timing mode that are easy to switch |
| Electric door with double lock rod design and magnetic locks |
| Parameters can be modified anytime during the process without stopping the machine |
| Unique design for air exhaust temperature and low noise |
| Alarm alerts prevent security hidden danger |
Applications
Used to acquire rapid precipitation of the sample, extract serum from blood, microcell separation, microbiological sample treatment, PCR experimental zone centrifugation.
Rotor Selection
| Rotor Model | Max speed (rpm) | Max RCF | Rotor capacity |
|---|---|---|---|
| Angle rotor 01 | 18000 | 18824 x g | 24 x 0.2 ml |
| Angle rotor 02 | 18000 | 16297 x g | 12 X 0.5 ml |
| Angle rotor 03 | 18000 | 23846 x g | 24 x 0.5 ml |
| Angle rotor 04 | 18000 | 23198 x g | 12 x 1.5 ml / 2.2 ml |
| Angle rotor 05 | 14000 | 14935 x g | 24 x 1.5 ml/2.2 ml |
| Angle rotor 06 | 16000 | 17459 x g | 12 x 5 ml |
| Angle rotor 07 | 14000 | 16327 x g | 12 x 7 ml |
| Angle rotor 08 | 12000 | 13363 x g | 12 x 10 ml |
