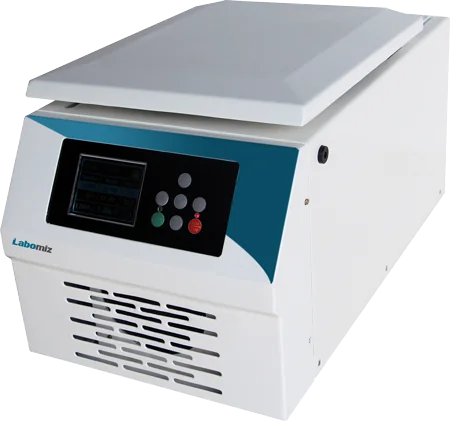

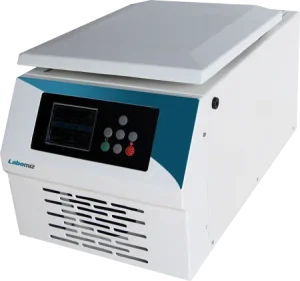

High speed refrigerated centrifuge MHRC-1A
Model: MHRC-1A · Category: Centrifuges
High speed refrigerated centrifuge MHRC-1A is a benchtop unit with a high speed of 16000 rpm and a temperature range between -20 ℃ ~ 40 ℃. Capable of maintaining lower temperature even during maximum speed. Digitalized LCD panel for viewing ongoing parameters with simultaneous regulation of speed and time. Features automatic calibration for RCF/RPM values and simultaneously displays it.
Specifications
| Speed range | 16000 rpm |
|---|---|
| Maximum RCF | 18800 × g |
| Speed accuracy | ± 20 rpm |
| Time range | 1 min ~ 99 mins |
| Maximum capacity | 6 × 50 ml |
| Temperature range | -20 ℃ ~ 40 ℃ |
| Temperature accuracy | ± 1.0 ℃ |
| Power supply | AC 220 V ± 22 V, 50 Hz 10A |
| Power | 400 W |
| Noise level | < 60 dB |
| Dimensions | 610 mm × 380 mm × 370 mm |
| Weight | 35 kg |
Features
| Maximum speed - 16000 rpm |
| Able to maintain lower temperature value (below 0°C), during maximum speed |
| Programmable operation - stores up to 15 programs |
| LCD control panel - viewing and regulating ongoing parameters (speed and time) |
| Automated speed and centrifugal force value detection function |
| User friendly interface for convenient simple operation |
| Electronic lid locking system for user’s safety (over speed protection) |
| Lid opens automatically on completion, prevents overheating of samples |
| Equipped with replaceable rotors for different sample concentrations |
Applications
| No. | Item |
|---|---|
| 1 | Used in research laboratories for DNA and RNA analysis, PCR or antibody analysis |
Rotor Selection
| Rotor type | Max. speed | Capacity | Max. RCF |
|---|---|---|---|
| Angle rotor | 16000 rpm | 12 × 1.5 ml / 2.2 ml | 18800 × g |
| 15000 rpm | 18 × 0.5 ml | 14080 × g | |
| 14000 rpm | 24 × 1.5 ml dual row | 18757 × g | |
| 13000 rpm | 10 × 5 ml | 10850 × g |
