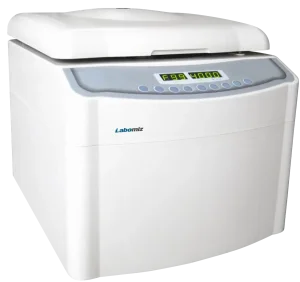

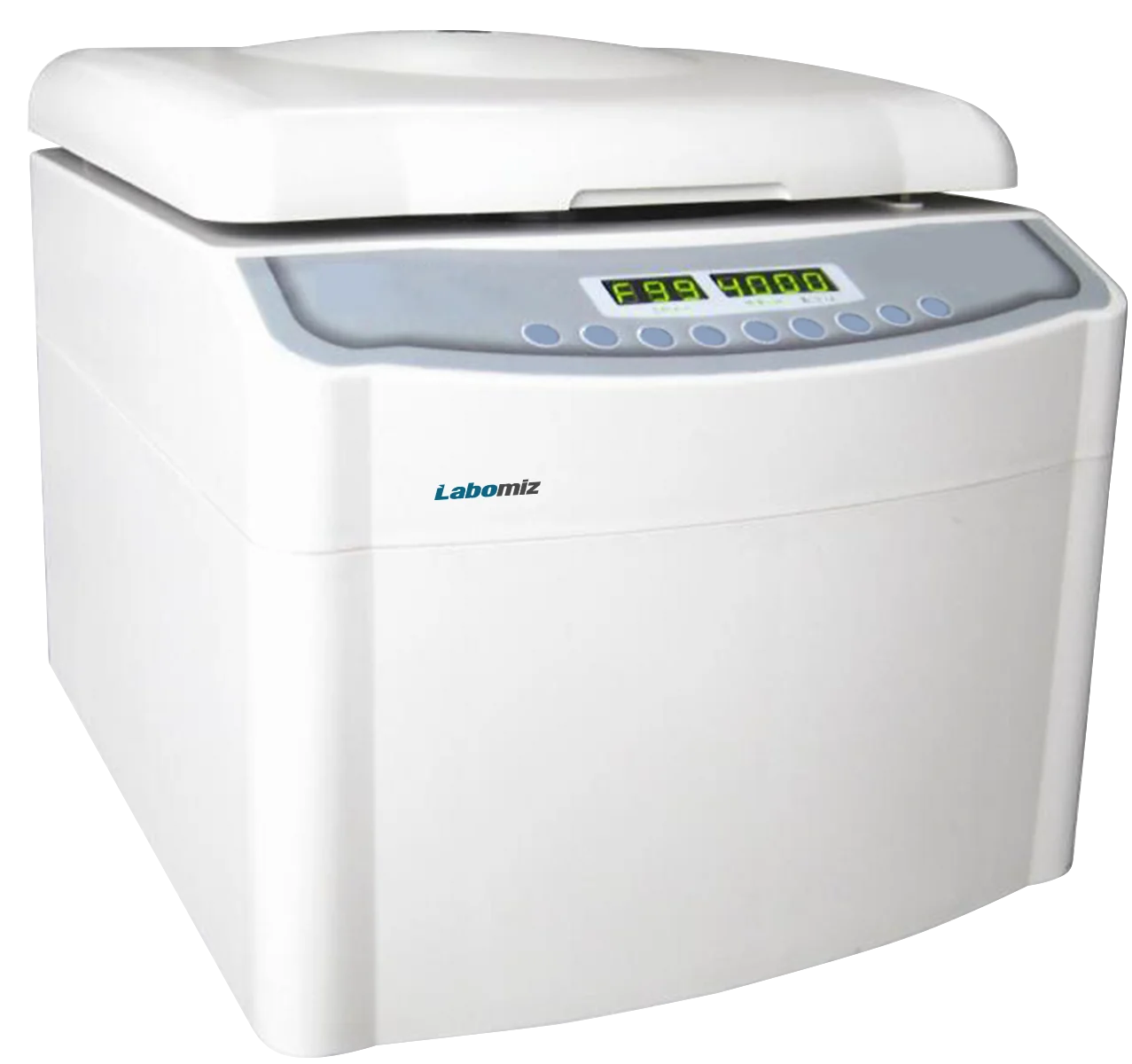

Low speed centrifuge MLSC-1A
Model: MLSC-1A · Category: Centrifuges
Low speed centrifuge MLSC-1A is a microcomputer controlled unit that is driven by brushless DC stepless speed regulation motor. Features a special key for centrifugal force through which the centrifugal force can be set or observed anytime during the process.
Specifications
| Max speed | 4000 rpm |
|---|---|
| Max RCF | 2432 x g |
| Rotor capacity | 15 ml / 20 ml x 6 |
| Temperature raise | ≤ 10 °C |
| Speed accuracy | ± 30 rpm |
| Noise | ≤ 60 dB |
| Time range | 1 s ̴ 99 min / continuation/ short term centrifugal |
| Power supply | AC 220 V 50 Hz |
| Power | 80 VA |
| Dimensions | 380 x 305 x 290 mm |
| Weight | 20 kg |
Features
| Microcomputer controlled system |
| Rotor is hot press formed of nylon composite material which can be matched with many conventional test tubes |
| Driven by brushless DC stepless speed regulating motor |
| Automatic stop on opening of the door to ensure operational safety |
| AC frequency conversion motor drive |
| Offers nine ascending and descending rate selection modes |
| Offers ten different kinds of custom work mode selection |
| Speed/ centrifugal force can be set and double synchronous display screen |
| Door with double lock rod design, magnetic locks and electric door |
| Up to 30 grams stress tolerance with no special load balancing |
Applications
| No. | Item |
|---|---|
| 1 | Used for a wide range of biomedical analysis, immunoenzyme analysis, microplate processing and cell culture applications |
