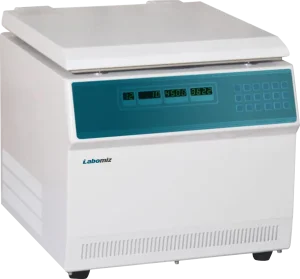

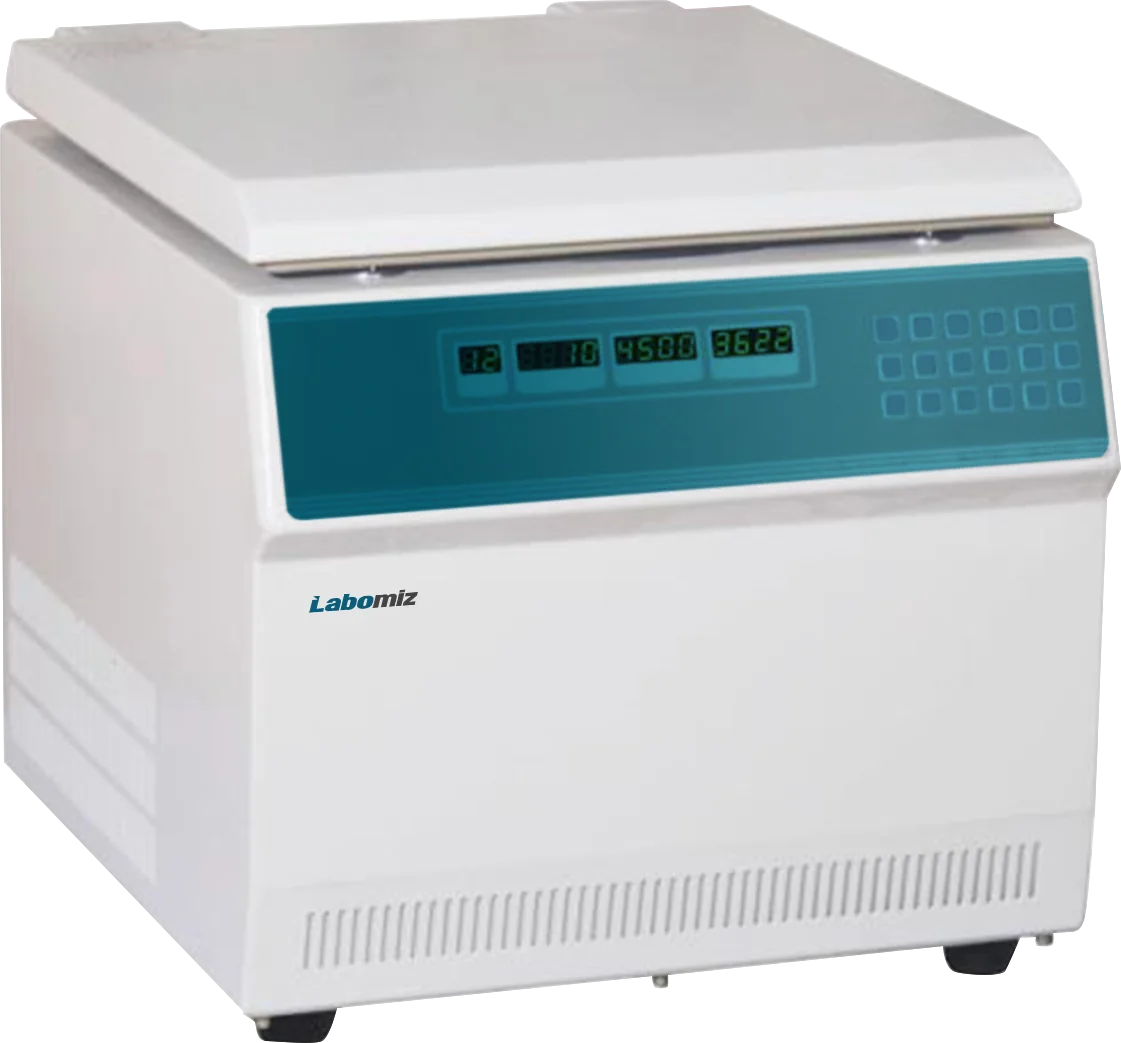

Low speed centrifuge MLSC-2J

Name: Low speed centrifuge MLSC-2J
Brand: Labomiz
SKU: MLSC-2J

Model: MLSC-2J · Category: Centrifuges

Low speed centrifuge MLSC-2J is a microcomputer controlled unit driven by brushless DC stepless speed regulation motor. Features a special key for centrifugal force through which the centrifugal force can be set or observed anytime during the process.

Specifications

Max speed	6000 rpm
Max RCF	5000 x g
Rotor capacity	4 x 100 ml
Temperature raise	≤ 8 °C
Speed accuracy	± 20 rpm
Noise	≤ 55 dB
Time range	1 s ̴ 99 mins
Power supply	AC 220 V 50 Hz
Power	450 VA
Dimensions	433 x 580 x 402 mm
Weight	55 kg

Features

Microcomputer controlled system

Driven by brushless DC stepless speed regulating motor

Automatic stop on opening of the door to ensure operational safety

AC frequency conversion motor drive

Offers nine ascending and descending rate selection modes

Offers ten different kinds of custom work mode selection

Speed/ centrifugal force can be set and double synchronous display screen

Door with double lock rod design, magnetic locks and electric door

Up to 30 grams stress tolerance with no special load balancing

Applications

Used for a wide range of biomedical analysis, immunoenzyme analysis, microplate processing and cell culture applications.

Rotor Selection

Sr No	Model	Max speed	Max RCF	Rotor capacity
1	Swing out rotor	4200 rpm	3155 x g	4 × 100 ml
	Adapter 01			4 × 50 ml
	Adapter 02			12 × 15 ml?Bottom tip with cover?
	Adapter 03			12 × urinary sediment tubes
	Adapter 04			16 × 10ml/15ml
	Adapter 05			1 6× Vacuum blood tube(high)
	Adapter 06			16 × Vacuum blood tube(short)
2	Swing out rotor	4200 rpm	3155 x g	40 × Vacuum blood tube??13×80mm short?
3	Swing out rotor	4200 rpm	3155 x g	40 × Vacuum blood tube??13×105mm long?
4	Angle rotor	6000 rpm	5000 x g	12 × 15 ml
5	ELISA Plate rotor	4000 rpm	1840 x g	96 holes × 2
6	ELISA Plate rotor	4000 rpm	2173 x g	96 holes × 4
