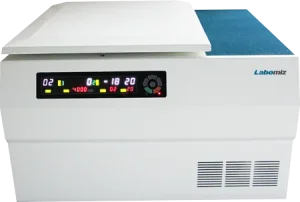

Benchtop low speed refrigerated centrifuge MLRC-1A
Model: MLRC-1A · Category: Centrifuges
Benchtop low speed refrigerated centrifuge MLRC-1A is a microcomputer controlled unit with a speed of 5000 rpm and temperature ranging from -20 ℃ ~ 40 ℃. Allows automated configuration of speed and RCF value with short spin press function for instant centrifugation. Equipped with digitalized LED panel for observing and regulating ongoing parameters (speed, time and temperature).
Specifications
| Speed range | 5000 rpm |
|---|---|
| Maximum RCF | 4390 × g |
| Speed accuracy | ± 20 rpm |
| Time range | 1 min ~ 99 mins |
| Maximum capacity | 4 × 250 ml |
| Temperature range | -20 ℃ ~ 40 ℃ |
| Temperature accuracy | ± 2.0 ℃ |
| Power supply | AC 220 V ± 22 V, 50 Hz, 10 A |
| Power | 750 W |
| Noise level | < 65 dB |
| Dimensions | 580 mm × 660 mm × 365 mm |
| Weight | 70 kg |
Features
| Maximum speed - 5000 rpm |
| Short spin function for instantaneous centrifugation |
| Automatically calibrates speed and centrifugal force value |
| Microprocessor control feature, automatically detects rotors and speed limit |
| Ten types of acceleration and deceleration control, with free stopping 9th control time longer than 540s |
| Maintains lower temperature value (-4 °C), even at maximum speed |
| LED control panel – viewing and regulating ongoing parameters (speed, time and temperature) |
| Secondary display for viewing countdown less than one minute |
| User friendly interface for convenient simple operation |
| Electronic lid locking system for user’s safety (over speed protection and imbalance) |
| Lid opens automatically on completion, preventing overheating of samples |
| Variable replaceable rotors for different sample concentrations |
Applications
Used for isolation and purification of blood samples, clinical medicine, radioactive immunology, biochemistry, pharmaceutics
Rotor Selection
| Rotor type | Max. speed | Capacity | Max. RCF |
|---|---|---|---|
| Horizontal rotor | 5000 rpm | 4 × 50 / 100 ml | 4390 × g |
| 4000 rpm | 8 × 50 / 100 ml | 2810 × g | |
| 4000 rpm | 48 × 5 /7 ml | 2810 × g | |
| 4000 rpm | 64 × 5 / 7 ml | 2810 × g | |
| 4000 pm | 72 × 5 / 7 ml | 2810 × g | |
| 4000 rpm | 16 × 10 / 15 ml | 2810 × g | |
| 4000 rpm | 24 × 10 / 15 ml | 2810 × g | |
| 4000 rpm | 32 × 10 /15ml | 2810 × g | |
| 4000 rpm | 4 × 250 ml | 3500 × g | |
| Microplate rotor | 4000 rpm | 2 × 2 × 96 wells | 2300 × g |
| 4000 rpm | 2 × 2 × 48 wells | 1700 × g |
