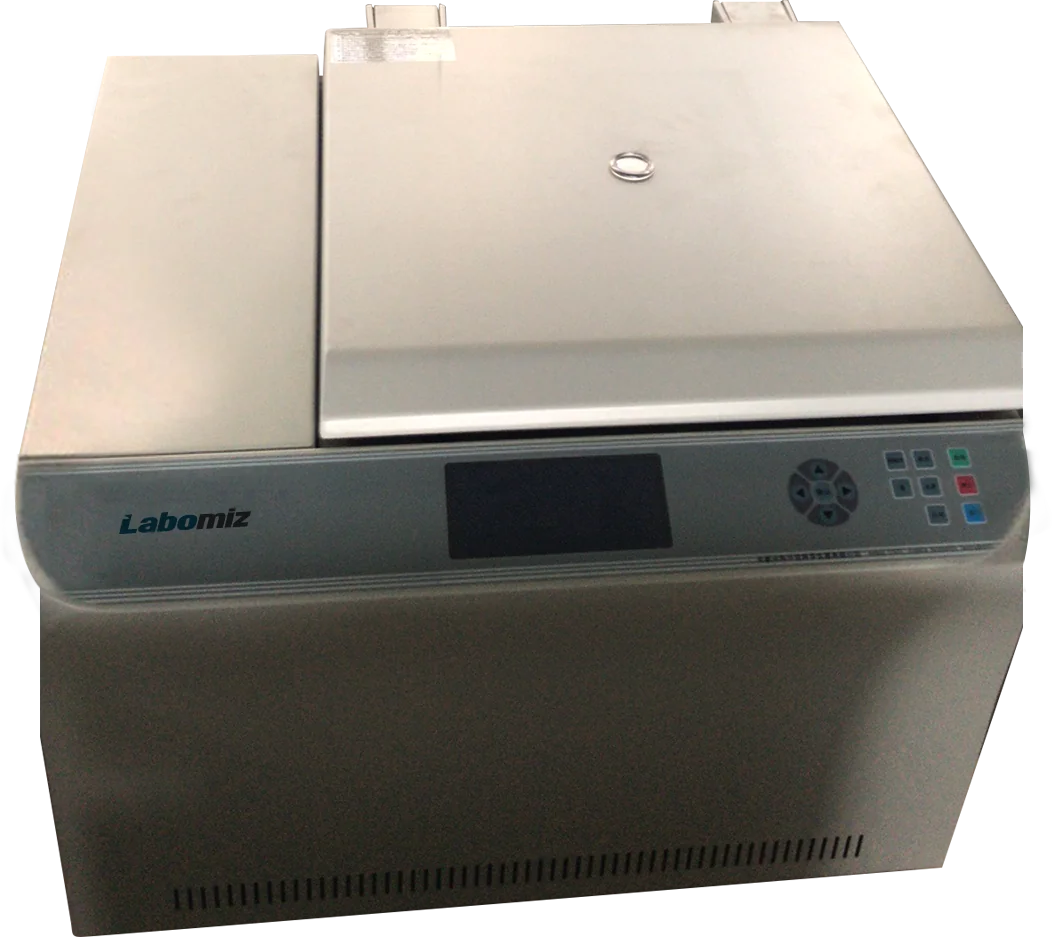

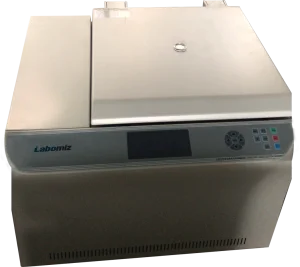

Low speed refrigerated centrifuge MLRC-2E
Model: MLRC-2E · Category: Centrifuges
Low speed refrigerated centrifuge MLRC-2E is a microcomputer controlled unit. It is equipped with digitalized LED panel for observing and regulating ongoing parameters such as speed, time and temperature. The parameters can be changed anytime during the operation without any downtime. It consists of an LCD display and the safety and reliability of the unit increases due to its double lock rod design doors with magnetic locks.
Specifications
| Type | Benchtop |
|---|---|
| Speed range | 4500 rpm |
| Maximum RCF | 3524 x g |
| Speed accuracy | ± 10 rpm |
| Maximum capacity | 4 x 300 ml |
| Temperature range | -20 °C to -40 °C |
| Temperature accuracy | ± 2 °C |
| Timer range (hh:mm:ss) | 1 min ̴ 99:99:59 |
| Power supply | AC 220 V 50 Hz |
| Power | 1500 W |
| Noise level | ≤ 56 dB |
| Dimensions | 680 x 710 x 525 mm |
| Weight | 80 kg |
Features
| Microcomputer controlled system |
| AC frequency conversion motor drive |
| Offers nine ascending and descending rate selection modes |
| Offers ten different kinds of custom work mode selection |
| Speed/ centrifugal force can be set and double synchronous display screen |
| Door with double lock rod design, magnetic locks and electric door |
| Full steel structure with stainless steel centrifugal cavity |
| Up to 30 grams stress tolerance with no special load balancing |
Applications
Used for a wide range of biomedical analysis, immunoenzyme analysis, microplate processing and cell culture applications.
Rotor Selection
| Sr.no | Model | Max speed | Max RCF | Rotor capacity |
|---|---|---|---|---|
| 1 | Swing-out rotor | 4500 rpm | 3524 x g | 4 × 300 ml?Round hanging cup? |
| Adapter 01 | 8 × 50 ml?Bottom tip with cover? | |||
| Adapter 02 | 76 × 5 ml | |||
| Adapter 03 | 56 × Vacuum blood tube | |||
| Adapter 04 | 4 × 100 ml | |||
| Adapter 05 | 28 ×15 ml | |||
| Adapter 06 | 40 × 10 ml | |||
| 2 | Swing-out rotor | 4500 rpm | 3321 x g | 148 × 4 ml?Honeycomb hanging cup? |
| 3 | ELISA plate rotor | 4500 rpm | 1842 x g | 96 holes × 2 |
| 4 | ELISA plate rotor | 4500 rpm | 2173 x g | 96 holes × 4 |
