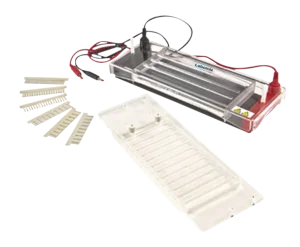

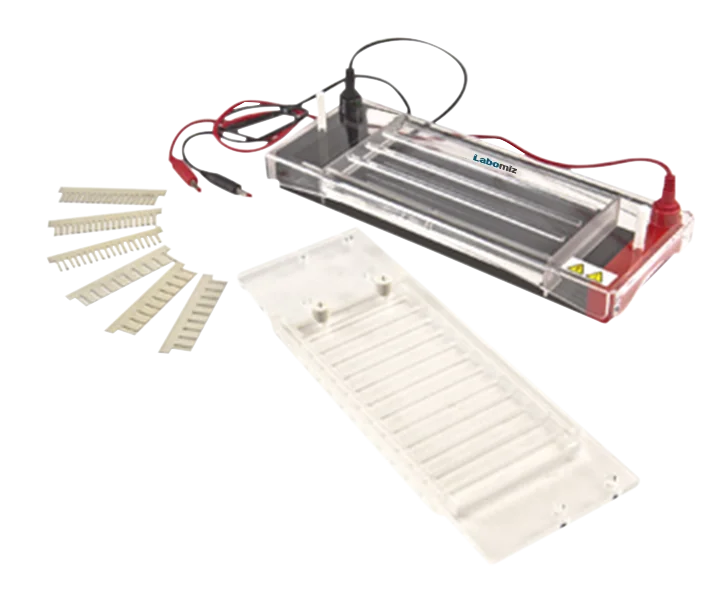

Rapid Electrophoresis Unit MREU-1A
Model: MREU-1A · Category: Electrophoresis
Rapid electrophoresis unit MREU-1A is a compact horizontal electrophoresis system with a capacity of detecting 96 samples simultaneously. Low buffer and gel volume with parallel electrode arrangement enables process to be completed within 15 minutes. It includes black bottom for clearer observation while sample loading and during experimental process.
Specifications
| Gel tray (W x L) | 85 x 200 mm |
|---|---|
| Buffer volume | 50 mL |
| No of samples | 10 to 216 |
| Rows of combs | 1 ~ 12 |
| Distance between electrodes | 270 mm |
| Gel making mode | Baffle |
| Dimensions (L x W x H) | 300 x 150 x 61 mm |
| Weight | 0.5 kg |
Features
| Run up to 96 samples |
| High resolution unit |
| Auto power off when lid is removed |
| Easy to open lid buttons |
| Multichannel pipette compatible (quick sample loading) |
Applications
Used in molecular biology, life science, research and diagnostic lab, education institutes for PCR amplification, cloning, high throughput screening of DNA, RNA and proteins for quick checking of samples.
Standard Accessories
| 1 | Body tank with electrode | 1 |
| 2 | Gel tray (85 x 200 mm) | 1 |
| 3 | Baffle | 2 |
| 4 | Combined comb frame | 1 |
| 5 | 1.0 mm thickness 10 wells comb | 12 |
| 6 | 1.8 mm thickness 18 wells comb | 12 |
| 7 | Electrical cable | 1 |
