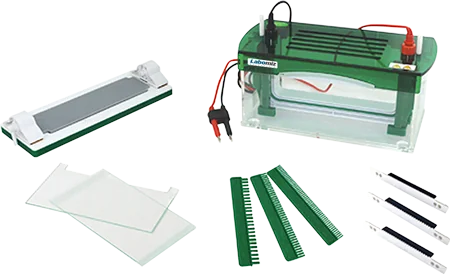

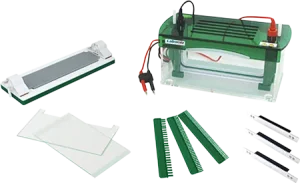

Vertical Electrophoresis Unit MVEU-1B
Model: MVEU-1B · Category: Electrophoresis
Vertical Electrophoresis Unit MVEU-1B is a leak proof electrophoresis unit with a capacity of 3500 ml buffer volume. Large quantity buffer ensures cooling effects and stable pH value during experimental process. Precast gel core prevents affecting the operation of gel making during electrophoresis
Specifications
| Glass tray (W x L) | 216 x 220 mm |
|---|---|
| Gel tray (W x L ) | 186 x 205 mm |
| Comb thickness | 1 mm |
| Comb throughput | 25, 40, 52 samples |
| Amount of Gel | 1 to 2 pieces |
| No of samples | 25 to 52 |
| Buffer volume | 3500 ml |
| External size (L x W x H ) | 280 x 140 x 250 mm |
| Package size (L x W x H) | 460 x 400 x 450 mm |
| Gross weight | 9 kg |
Features
| No of samples - 25 to 52 |
| Safety switch for lid opening |
| Auto switch off when lid is removed |
| Fast set up time and leak-proof operation |
| Bias power supply (BPS-3) for controlling circuit |
Applications
Used in healthcare, forensic, research and clinical lab, microbiology, biochemistry for separation, purification and preparation of nucleic and proteins samples, etc.
Standard Accessories
| No. | Item |
|---|---|
| 1 | Body tank with electrode x 1,Gel casting base x 2,Notched glass plates x 4 |
| 2 | 1 mm bonded glass spacer x 4, 1 mm thickness 25 wells comb x 2 |
| 3 | 1 mm thickness 40 wells comb x 2 ,1 mm thickness 52 wells comb x 2 |
| 4 | 25 well guide sample device x 2, 40 well guide sample device x 2 |
| 5 | 52 well guide sample x 2 |
Optional Accessories
| No. | Item |
|---|---|
| 1 | Cooling circulation device |
