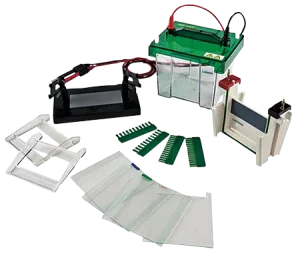

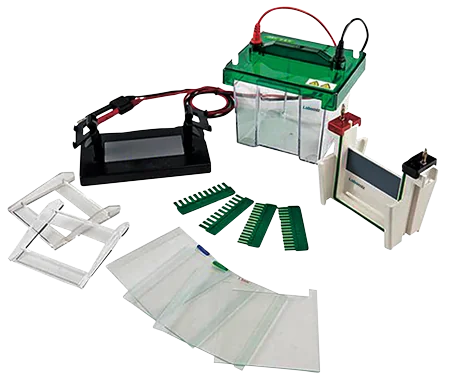

Vertical Electrophoresis Unit MVEU-1A
Model: MVEU-1A · Category: Electrophoresis
Vertical Electrophoresis Unit MVEU-1A is a leak proof electrophoresis unit with a capacity of 750 ml buffer volume. Large quantity buffer ensures cooling effects and stable pH value during experimental process. Features color coded sample background for easy sample loading and detection.
Specifications
| Glass tray (W x L) | 100 x 100 mm |
|---|---|
| Gel tray (W x L ) | 82 x 88 mm |
| Comb thickness | 0.75 mm ,1.0 mm and 1.5 mm |
| Comb throughput | 11,15 samples |
| Amount of Gel | 1 to 2 pieces |
| No of samples | 11 to 30 |
| Buffer volume | 750 ml |
| External size (L x W x H ) | 150 x 120 x 115 mm |
| Package size (L x W x H) | 370 x 300 x 220 mm |
| Gross weight | 2 kg |
Features
| No of samples - 11 to 30 |
| Auto-switch off when lid is removed |
| Color coded sample background for easy sample loading and detection |
| Fast set up time and leak-proof operation |
| Bias power supply (BPS-2) for controlling circuit |
Applications
Used in healthcare, forensic, research and clinical lab, microbiology, biochemistry for separation, purification and preparation of nucleic and proteins samples, etc.
Standard Accessories
| No. | Item |
|---|---|
| 1 | Body tank electrode x 1,Gel casting base x 1,Notched glass plates x 4 |
| 2 | 0.75 mm bonded glass spacer x 2 , 1 mm bonded glass spacer x 2 |
| 3 | 1.5 mm bonded glass spacer x 2, 0.75 mm thickness 11 wells comb x 2 |
| 4 | 1 mm thickness 11 wells comb x 2,1.5 mm thickness 11 wells comb x 2 |
| 5 | 0.75 mm thickness 15 wells comb x 2,1.0 thickness 15 wells combs x 2 |
| 6 | 1.5 mm thickness 15 wells comb x 2,Gel shovel x 1 ,clamp version x 2,Dummy plate x 1 |
