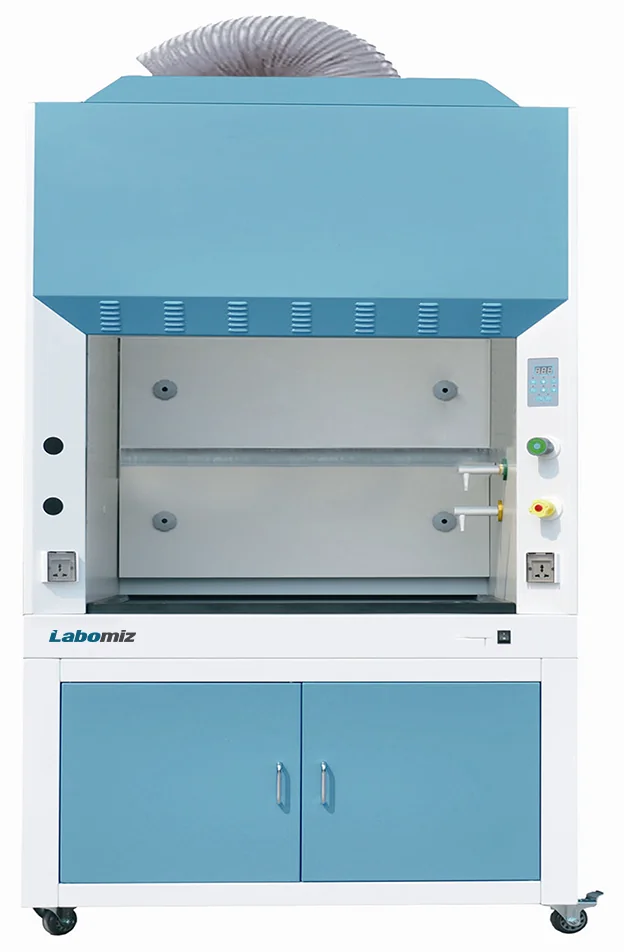

Ducted fume hood MDFH-1A
Model: MDFH-1A · Category: Fume Hoods
Ducted fume hood MDFH-1A is a floor mounted, dual layered unit made of exterior cold-rolled steel and interior melamine board. Built-in centrifugal blower controls air stream speed. UV lamps aids in efficient decontamination. LED digital screen displays airflow level. Standard PVC exhaust duct removes toxic fumes and provide excellent chemical resistance.
Specifications
| Internal dimensions | 820 × 670 × 730 mm |
|---|---|
| External dimensions | 1040 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 520 mm |
| Air velocity | 0.3 m/sec ⁓ 0.8 m/sec |
| Front window | 5 mm toughened glass |
| UV emission | 253.7 nm |
| LED lamp | 8 W × 1 |
| Exhaust duct length | 4 m |
| Exhaust duct diameter | 300 mm |
| Pipe strap | 1 |
| Noise | ≤ 68 dB |
| Power consumption | 400 W |
| Power supply ( AC ) | 220 V ±10 %, 50 / 60 Hz 110 V ± 10 %, 60 Hz |
| Main body dimensions | 1190 × 990 × 1690 mm |
| Base cabinet dimensions | 1290 × 990 × 980 mm |
| Weights | 286 kg |
Features
| Adjustable air speed ( 9 Level ) |
| Motor regulated front glass window ( height adjustment ) |
| Remote controllable water and gas tap |
| Exterior material with antibacterial power coating |
| Interior material with acid alkali resistance |
| UV- lamp perform chamber sterilization |
| Two water proof socket |
| Active carbon filter ( optional ) |
Applications
Used to completely remove chemical fumes ( potential toxics ) from laboratories and protects the lab environments. Used during general chemical applications.
