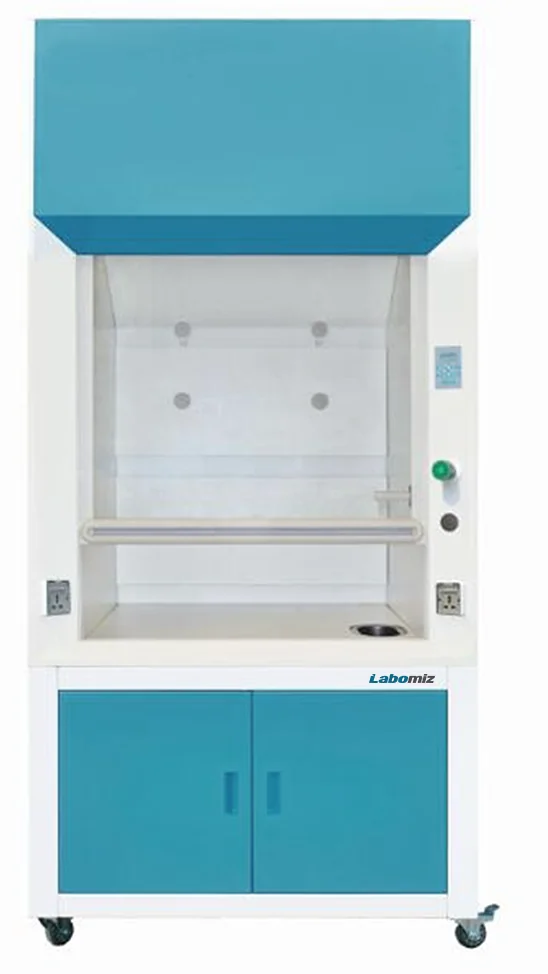

Ducted fume hood MDFH-2D
Model: MDFH-2D · Category: Fume Hoods
Ducted fume hood MDFH-2D is a floor mounted dual layered structured unit made of exterior cold-rolled steel and interior melamine board. Built-in axial flow blower ( PP ) controls air stream speed. LED digital screen displays air flow level. Standard PVC exhaust duct removes toxic fumes and provide excellent chemical resistance.
Specifications
| Internal dimensions | 1590 × 600 × 870 mm |
|---|---|
| External dimensions | 1800 × 800 × 2515 mm |
| Work surface height | 900 mm |
| Maximum opening | 750 mm |
| Air velocity | 0.3 m/sec ~ 0.8 m/sec |
| System exhaust volume | 1140 m3/h |
| Front window | 5 mm toughened glass |
| LED lamp | 16 W × 1 |
| Exhaust duct length | 4 m |
| Exhaust duct diameter | 300 mm |
| Pipe strap | 4 |
| Noise | ≤ 60 dB |
| Power consumption | 500 W |
| Power supply ( AC ) | 220 V ±10 %, 50 / 60 Hz 110 V ± 10 %, 60 Hz |
| Main body dimensions | 1940 × 940 × 1850 mm |
| Base cabinet dimensions | 1940 × 940 × 1050 mm |
| Weights | 330 kg |
Features
| Adjustable air speed ( 9 Level ) |
| Manual front glass window ( height adjustable ) |
| Water and sink for nearest accessibility ( Remote control ) |
| Exterior material with antibacterial power coating |
| Interior material with acid alkali resistance |
| Air velocity memory function |
| Phenolic resin coated work table ( Chemical resistance ) |
| Two water proof socket |
Applications
Used to completely remove chemical fumes ( potential toxics ) from laboratories and protects the lab environments. Used during general chemical applications.
