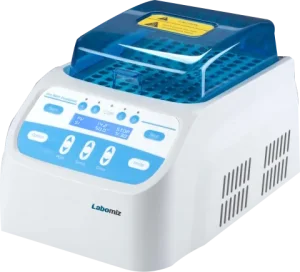

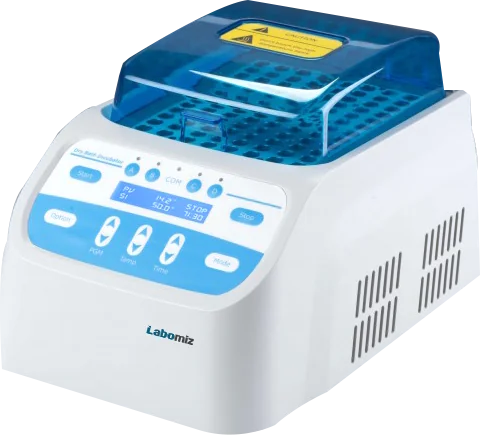

Dry bath incubator MDBI-3A
Model: MDBI-3A · Category: Incubators
Dry bath incubator MDBI-3A is a microprocessor controlled incubator unit with a temperature range of 5°C to 110°C. Features an aluminium heating block for rapid heating of samples adding to its usage as a water bath.
Specifications
| Block quantity | 4 |
|---|---|
| Temperature setting range | 0°C ~ 110°C |
| Temperature control range | RT +5°C ~ 110°C |
| Time range | 1min ~ 99h59min |
| Temperature Accuracy | ≤±0.3°C at 37°C |
| Display Accuracy | 0.1°C |
| Temperature Uniformity | ≤±0.3°C at 37°C |
| Heating Time | ≤20min(from 25°C to 110°C) |
| Auto Heating | Yes |
| Timing independently for each group | Yes |
| Voltage | AC220V or AC110V |
| Frequency | 50/60Hz |
| Fuse | 250V 3A Ф5×20 |
| Power input | 500W |
| Dimensions (W x H x D) mm | 370x254x228 |
| Weight (KG) | 8 |
Features
| LCD display, simple interface |
| Easy to set up and use |
| Blue transparent lid prevents samples splashing out |
| Accurate temperature control, high stability |
| With four groups(A/B/C/D), timing independently or simultaneously |
| Optional blocks are available for common laboratory tubes and plates. Custom blocks are also available upon request |
| Built-in temperature calibration function |
| Built-in over-heating protection device, safe and reliable. |
Applications
It can be widely used in the sample safeguarding, reaction of DNA amplification, electrophoresis, degeneration, solidification and different sorts of serum biochemical sample thermostatic incubation cycle.
Optional Blocks
| TYPE | Diameter of test tube | Number of test tube |
|---|---|---|
| 01 | 6mm | 48 |
| 02 | 7mm | 48 |
| 03 | 10mm | 24 |
| 04 | 12mm | 24 |
| 05 | 13mm | 24 |
| 06 | 15mm | 16 |
| 07 | 16mm | 16 |
| 08 | 19mm | 12 |
| 09 | 20mm | 12 |
| 10 | 26mm | 8 |
| 11 | 28mm | 4 |
| 12 | 40mm | 3 |
| 13 | 0.2ml centrifuge tube | 48 |
| 14 | 0.5ml centrifuge tube | 48 |
| 15 | 1.5ml centrifuge tube | 24 |
| 16 | 2.0ml centrifuge tube | 24 |
| 17 | 0.2ml PCR plate | 96 |
| 18 | 0.2ml Elisa plate | 96 |
