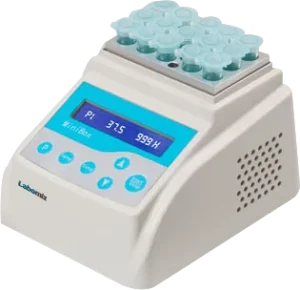

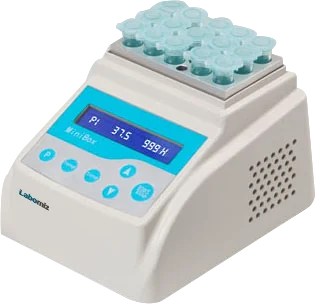

Mini Dry bath incubator MDBI-7B
Model: MDBI-7B · Category: Incubators
Mini Dry bath incubator MDBI-7B is a microprocessor-controlled dry block heating system.
Specifications
| Temperature setting range | 0°C~100°C |
|---|---|
| Temperature control range | RT -15°C~100°C |
| Temperature Accuracy | ≤±0.3°C |
| Time range | 1 sec ~ 99 min 59 sec 1 min~ 99 h 59 min |
| Temperature Uniformity | ≤±0.3°C |
| Display Acuuracy | 0.1°C |
| Heating Time | ≤20min(from 25°C to 100°C) |
| Cooling Time | ≤20min(from 100°C to 25°C) |
| Auto Heating | ≤25min(from RT to -15°C) |
| Voltage | Yes |
| Dimensions (W x H x D) mm | DC12V/5A |
| Weight (KG) | 145x113x140 |
Features
| Energy-efficient design. | |
| Applicable to 12V power adapter. | |
| Accurate to ±0.3°C. | |
| Process of experiment is visible. | |
| Electronic calibration. User can reset to any local standard. | |
| Custom blocks made to fit any sample holder. |
Applications
It is widely used in preservation and reaction of samples, DNA amplification and initial denaturation of electrophoresis.
Optional Blocks
| TYPE | Capacity |
|---|---|
| Mini01 | 15×2.0ml |
| Mini02 | 15×1.5ml |
| Mini03 | 24×0.5ml |
| Mini04 | 32×0.2ml (for 0.2ml PCR 8-tube strip) |
| Mini05 | 32×0.2ml (for 0.2ml Elisa 8-well strip) |
