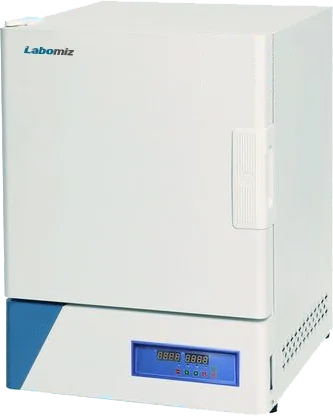

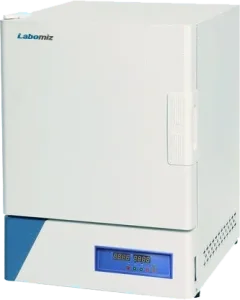

Gravity Convection Incubator MGCI-1A
Model: MGCI-1A · Category: Incubators
Gravity Convection Incubator MGCI-1A is equipped with air jacket system for uniform temperature distribution, excellent heat insulation and gentle air flow in chamber. Microprocessor PID auto-tuning controller installed at the bottom of the chamber controls temperature, speed and flow. Safety devices include ELB ( elastic load balancing ), self-diagnosis functions such as memory error, overheating, SSR and sensor short circuit for end user safety.
Specifications
| Capacity | 91 L |
|---|---|
| Chamber | 1 |
| Shelves | 3 |
| Environmental temperature range | 5 °C ~ 25 °C |
| Ambient temperature range | 5 °C ~ 70 °C |
| Temperature accuracy | ± 0.5 °C at 37 °C |
| Thermocouple | Pt 100 Ω |
| Heater power | 200 W |
| Power ( 1 phase ) | AC 230 V 50 Hz /60 Hz |
| Chamber dimensions ( W × D × H ) | 450 × 450 × 450 mm |
| Exterior dimensions ( W × D × H ) | 580 × 600 × 820 mm |
| Net weight | 47 kg |
Features
| Overheating prevention by auto shut off circuit |
| Solid-state relay (SSR) type temperature regulator (an electronic switching device) |
| Digital display for parameters view and control |
| Clear safety inner glass door (observation window) |
| Stainless steel shelves (interior material) |
| Steel plate with powder coated finish (exterior material) |
Applications
Used for general laboratory applications like bacterial research, microbiology, pharmaceutical, gene cloning, food and beverage testing.
