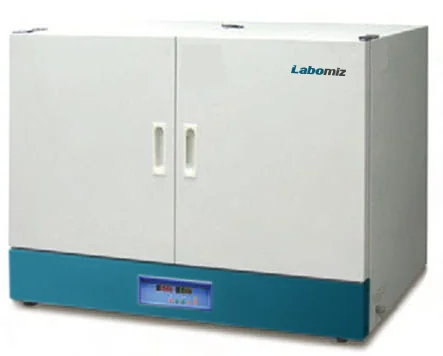

Gravity Convection Incubator MGCI-2A
Model: MGCI-2A · Category: Incubators
Gravity Convection Incubator MGCI-2A is equipped with air jacket system for uniform temperature distribution, excellent thermal insulation and gentle air flow in chamber. Microprocessor PID auto-tuning controller installed at the bottom of the chamber controls the temperature, speed and flow. Safety tempered glass inner door prevents heat loss and provide clear sample visualization. Safety devices include ELB ( elastic load balancing ) and overheating protection system for end user safety.
Specifications
| Capacity | 202 L ( 101 L × 2 chambers ) |
|---|---|
| Chamber | 2 |
| Shelves ( Each chamber ) | 3 |
| Total shelves ( 2 chambers ) | 6 |
| Environmental temperature range | 5 °C ~ 25 °C |
| Ambient temperature range | 5 °C ~ 70 °C |
| Temperature accuracy | ± 0.5 °C at 37 °C |
| Thermocouple | Pt 100 Ω |
| Heater power | 400 W |
| Power ( 1 phase ) | AC 230 V 50 Hz /60 Hz |
| Chamber dimensions ( W × D × H ) | 900 × 450 × 500 mm × 2 chambers |
| Exterior dimensions ( W × D × H ) | 1300 × 600 × 780 mm |
| Net weight | 86 kg |
Features
| Double-door system |
| Magnetic closure with positive sealing gasket (outer door) |
| Solid-state relay (SSR) type temperature regulator (an electronic switching device) |
| Ni-Cr heating element |
| Digital display for parameters view and control |
| Stainless steel plate/shelves (interior material) |
| Steel plate with powder coated finish (exterior material) |
Applications
Used for general laboratory applications like bacterial research, microbiology, pharmaceutical, gene cloning, food and beverage testing.
