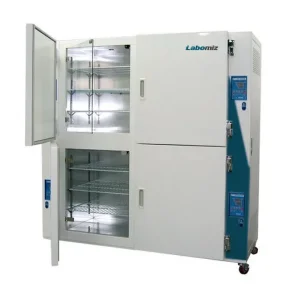

Multi-Chamber Incubator MCI-1A
Model: MCI-1A · Category: Incubators
Multi-Chamber Incubator MCI-1A is equipped with gravity convection system for uniform temperature distribution and gentle air flow in chamber. Separate microprocessor PID auto-tuning controller, controls four chambers individually and variables like temperature, speed and flow. Safety tempered glass inner door prevents heat loss and provide clear sample visualization. Safety devices include ELB ( elastic load balancing ), self-diagnosis functions such as memory error, overheating, SSR and sensor short circuit for end user safety.
Specifications
| Capacity | 288 L ( 72 L × 4 chambers ) |
|---|---|
| Chamber | 4 |
| Shelves ( Each chamber ) | 3 |
| Total shelves ( 4 chambers ) | 12 |
| Environmental temperature range | 5 °C ~ 25 °C |
| Ambient temperature range | 5 °C ~ 60 °C |
| Temperature accuracy | ± 0.5 °C at 37 °C |
| Thermocouple | Pt 100 Ω |
| Heater power | 800 W ( 200 W × 4 chambers ) |
| Power ( 1 phase ) | AC 230 V 50 Hz /60 Hz |
| Chamber dimensions ( W × D × H ) | 400 × 400 × 450 mm × 4 chambers |
| Exterior dimensions ( W × D × H ) | 1300 × 550 × 1250 mm |
| Net weight | 178 kg |
Features
| Double-door system |
| Solid-state relay (SSR) type temperature regulator (an electronic switching device) |
| Each chamber operates at different conditions |
| Magnetic closure with positive sealing gasket (outer door) |
| Ni-Cr heating element |
| Digital display for parameters view and control |
| Stainless steel shelves (interior material) |
| Steel plate with powder coated finish (exterior material) |
Applications
Used for general laboratory applications like bacterial research, microbiology, pharmaceutical, gene cloning, food and beverage testing.
