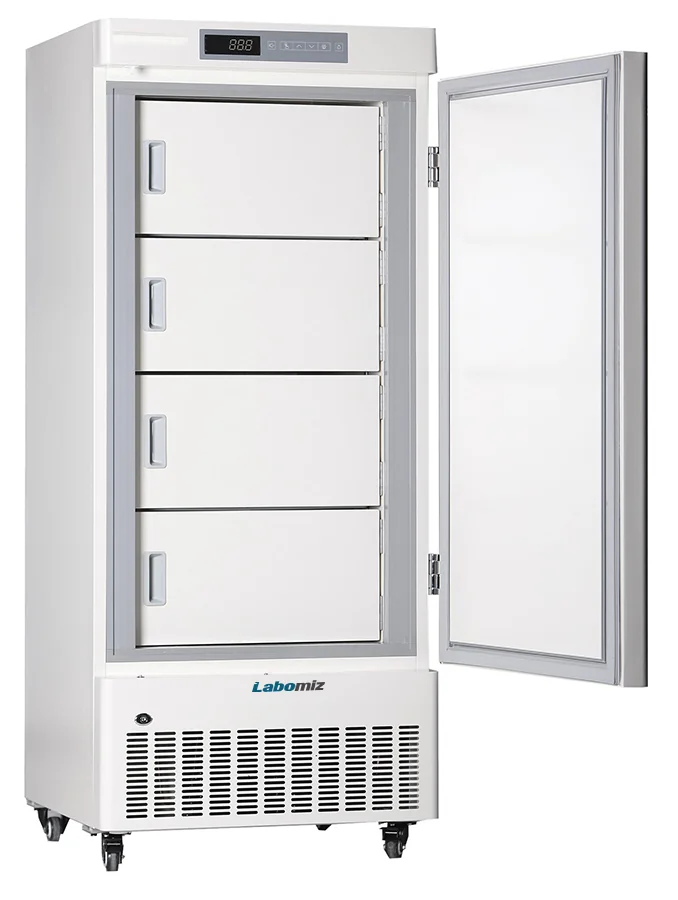

-25°C Upright deep freezer MUDF-1A
Model: MUDF-1A · Category: Lab Freezer
-25°C Upright deep freezer MUDF-1A is a single solid door stand-alone cold storage freezer equipped with electronic temperature control. Direct-cooling ensures consistent performance at utmost efficiency for prolonged refrigeration. Shelved platform with partition facilitates organized storage compatible with sample standards. Temperature controller renders reliable temperature uniformity. System alarms include high or low set temperature limits, sensor fail or temperature controller and door ajar conditions.
Specifications
| Storage capacity | 278 L |
|---|---|
| Shelves | 7 |
| Exterior dimensions | 659 × 600 × 1694 mm |
| Interior dimensions | 480 × 415 × 1460 mm |
| Temperature range | -10 °C to -25°C |
| Temperature sensor | NTC |
| Evaporator | Aluminium coiled tube |
| Condenser | Pre-embedded tube |
| Refrigerant | R290 |
| Ambient temperature | 10 °C ~ 32 °C |
| Noise | 50 dB |
| Power consumption | 1.5 kW/h |
| Power supply | 220 V / 50 Hz |
| Power | 180 W |
| Weight | 105 kg |
Features
| Storage capacity: 278 L |
| Direct cooling technology with manual defrost |
| Acrylic shelf internal doors for secured storage |
| Digital control panel for temperature monitoring and alarms |
Applications
Used in clinical pathology, bacteriology, botanical and medical research labs for standardized storage of low-risk temperature-sensitive specimen, vaccines and microbial agents for research applications.
Optional Accessories
| Part No | Part Name |
|---|---|
| ATR-10 | Thermal Recorder |
| TH-10 | Test Hole |
