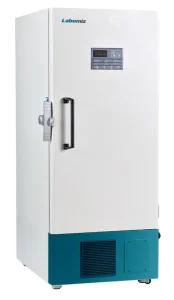

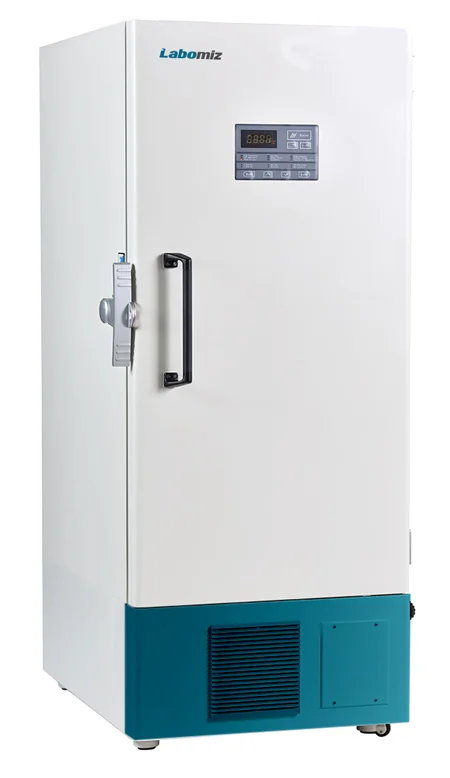

-86°C Upright ULT freezer MUUF-2D
Model: MUUF-2D · Category: Lab Freezer
-86°C Upright ULT freezer MUUF-2D is a standard single solid door standalone freezer equipped with electronic temperature control. Direct-cooling ensures consistent performance at utmost efficiency for prolonged refrigeration. Shelved platform with partition facilitates organized storage compatible with sample standards. System alarms include high or low set temperature limits, sensor fail or temperature controller and open ajar conditions.
Specifications
| Storage capacity | 588 L |
|---|---|
| Shelves | 3 |
| External size | 872 × 1192 × 1995 mm |
| Internal size | 606 × 738 × 1310 mm |
| Temperature range | -40 °C to -86°C |
| Temperature sensor | PTC |
| Evaporator | Copper coiled tube |
| Condenser | Copper type Brass aluminum fin |
| Compressor | 1 |
| Refrigerant | Mixed |
| No. of test hole | 1 |
| Diameter of test hole | 25 mm |
| Noise | 53 dB |
| Power consumption | 12.5 kW/h |
| Power supply | 220 V / 50 Hz ; 6.9 A |
| Power | 800 W |
| Weight | 249 kg |
Features
| Capacity : 588 L |
| Direct cooling technology with manual defrost |
| Consistent performance during long-term refrigeration |
| Digital control panel for temperature monitoring and alarms |
| Latched door-lock for dependable sample protection |
Applications
Used in diagnostic laboratories, clinical pathology laboratories for standardized storage for temperature sensitive specimen, enzyme, reagents, and other bio-chemical products used for research applications.
Optional Accessories
| Module No. | Module Name |
|---|---|
| ATR-2D | Thermal Recorder |
| COB-2D | CO2 Backup system |
| LNB-2D | LN2 Backup system |
