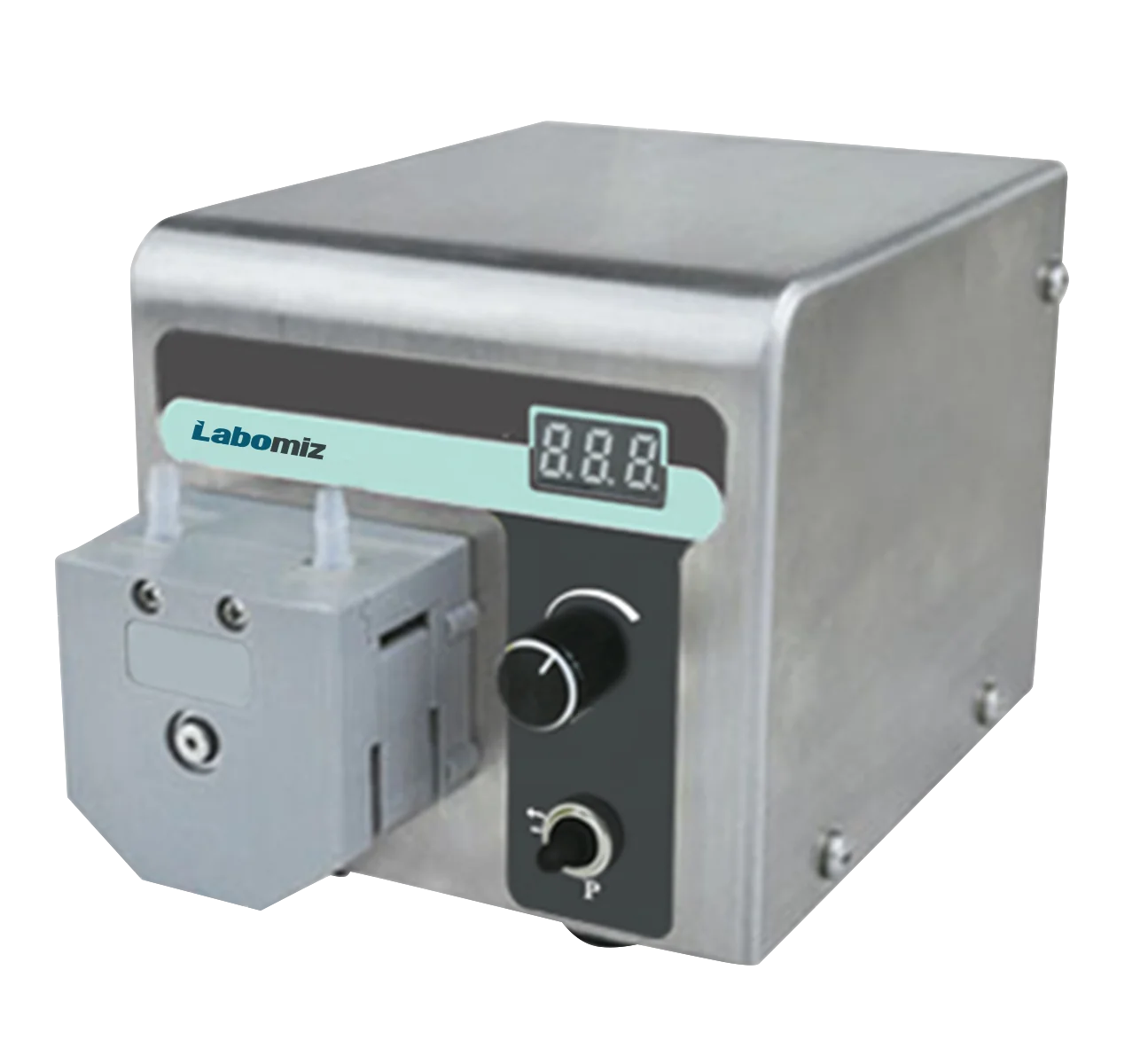

Compact Peristaltic Pump MCPP-1B
Model: MCPP-1B · Category: Peristaltic Pump
Compact Peristaltic Pump MCPP-1B is a positive displacement pump with a digital knob to control speed. It pumps out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is designed for processes requiring limited weight, size and low EMI interference.
Specifications
| Number of Channels | 1 ~ 2 |
|---|---|
| Flow rate range | 0.0024 ml /min ~ 190 ml /min |
| Number of rollers | 4 |
| Speed range | 0.1 rpm ~ 350 rpm |
| Speed resolution | 0.1 rpm |
| Ambient temperature | 0 °C ~ 40 °C |
| Relative humidity | < 80 % |
| Power consumption | < 15 W |
| IP grade | IP31 |
| Power | DC 24 V/ 1A |
| Dimension ( L × W × H ) | 136 mm× 113 mm × 108 mm |
| Weight | 1.64 kg |
Features
| Stainless steel, corrosion resistant structure |
| OLED Screen displays current motor speed, direction and working state |
| Mechanical keypad for controlling direction and speed |
| Equipped with Stepper motor drive |
| Water-proof groove in the pump head mounting side |
| Transparent cover to view working of the pump head and tubing |
| Polyester pump head for rigidity and precision |
| External control function to start / stop the unit |
| Digital knob to control speed |
Applications
Used in waste water treatments, mining industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
Standard Accessories
| Accessory No | Accessory |
|---|---|
| 1 | Power line |
| 2 | Silicone tubing |
| 3 | Manual |
Optional Accessories
| Accessory No | Accessory |
|---|---|
| 1. | Foot pedal switch |
| 2. | Filling nozzle |
| 3. | Support stand |
| 4. | One way valve |
Dual Channel Tubing and Flow Rate
| Rotation speed (rpm) | Wall thickness | |||
|---|---|---|---|---|
| 1.0 mm | ||||
| Tubing ID 1 mm | Tubing ID 2 mm | Tubing ID 2.5 mm | Tubing ID 3 mm | |
| 5 | 0.25 | 0.90 | 1.28 | 1.78 |
| 10 | 0.49 | 1.84 | 2.59 | 3.52 |
| 15 | 0.74 | 2.76 | 3.85 | 5.30 |
| 25 | 1.25 | 4.57 | 6.43 | 8.80 |
| 40 | 2.0 | 7.31 | 10.25 | 14.02 |
| 50 | 2.52 | 9.14 | 12.78 | 17.47 |
| 75 | 3.76 | 13.64 | 19.04 | 26.12 |
| 100 | 5.03 | 18.17 | 25.42 | 35.34 |
| 200 | 10.12 | 36.45 | 51.27 | 71.44 |
| 250 | 12.63 | 45.75 | 64.34 | 88.35 |
| 300 | 15.01 | 54.63 | 76.84 | 108.39 |
Single Channel Tubing and Flow Rate
| Rotation speed (rpm) | Wall thickness | |||
|---|---|---|---|---|
| 1.6 mm | ||||
| Tubing ID 0.8 mm | Tubing ID 1.6 mm | Tubing ID 3.1 mm | Tubing ID 4.8 mm | |
| 5 | 0.12 | 0.56 | 1.97 | 3.26 |
| 10 | 0.26 | 1.15 | 3.90 | 6.41 |
| 15 | 0.39 | 1.74 | 5.80 | 9.52 |
| 25 | 0.66 | 2.88 | 9.59 | 15.74 |
| 40 | 1.08 | 4.59 | 15.29 | 25.15 |
| 50 | 1.34 | 5.69 | 18.96 | 31.14 |
| 75 | 2.0 | 8.54 | 28.36 | 46.55 |
| 100 | 2.73 | 11.37 | 37.66 | 61.98 |
| 200 | 5.46 | 22.76 | 76.02 | 124.14 |
| 250 | 6.81 | 28.40 | 95.08 | 153.63 |
| 300 | 8.28 | 33.88 | 114.31 | 190 |
