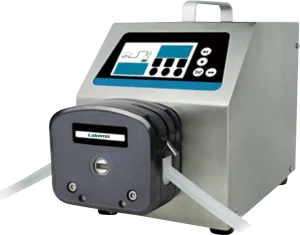

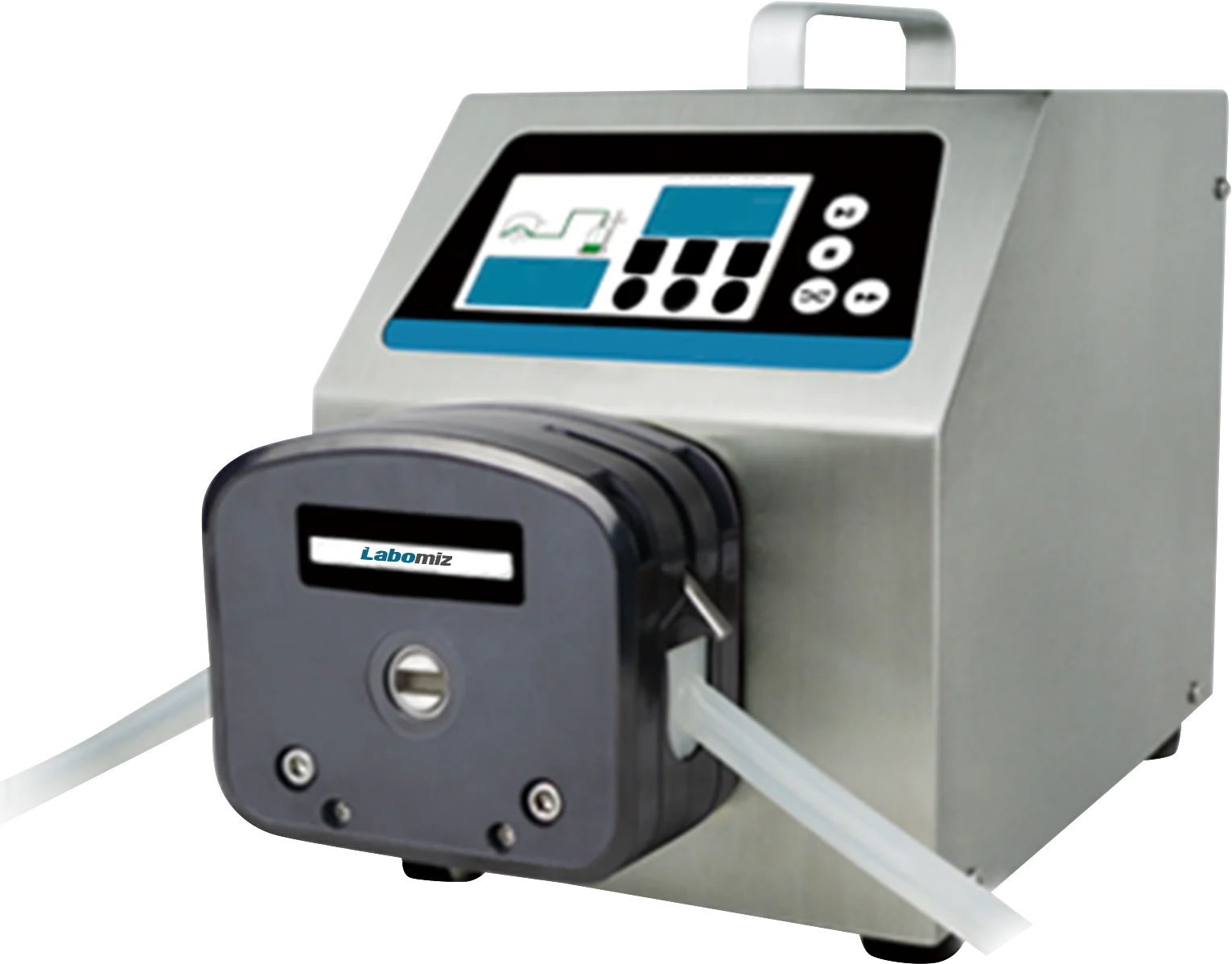

Dispensing Peristaltic Pump MDPP-1E

Name: Dispensing Peristaltic Pump MDPP-1E
Brand: Labomiz
SKU: MDPP-1E

Model: MDPP-1E · Category: Peristaltic Pump

Dispensing Peristaltic Pump MDPP-1E is a positive displacement pump with mechanical keypad for controlling direction and speed. Specially designed pump heads pump out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is ideal for dispensing, metering and general transfer of fluids.

Specifications

Flow rate range	3.0 mL / min ~ 6000 mL / min
Speed range	1 rpm ~ 600 rpm
Dispensing volume range	0.01 mL ~ 9999.99 mL
Number of channels	2
Number of rollers	3
Dispensing time	0.1 sec ~ 9999.99 sec
Speed resolution	0.01 rpm
Dispensing volume resolution	0.01 mL
Pause time	0.1 sec ~ 9999.99 sec
Time resolution	0.01 sec
Dispensing accuracy	< ± 0.5 %
Back suction angle	0° ~ 360°
IP grade	IP31
Outlet Pressure	0.3 Mpa
Standard Power supply	220 V ± 10 % 50 Hz 220 V ± 10 % 60 Hz
Optional Power supply	110 V ± 10 % 50 Hz 110 V ± 10 % 60 Hz
Power consumption	< 180 W
Temperature	0 °C ~ 40 °C
Relative humidity	< 80 %
Dimension ( L × W × H )	283 mm × 192 mm × 218 mm
Weight	7.85 kg

Features

Stainless steel construction

4.3’’ LCD touch screen displays current motor speed, direction and working state

Embedded handle for comfortable grip and convenience

Ability to preset dispensing volume and time, pause time, copy numbers and back suction angle

Mechanical keypad for controlling direction and speed

Equipped with Servo motor drive

Applications

Used in pharmaceuticals, waste water treatments, cosmetic industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
