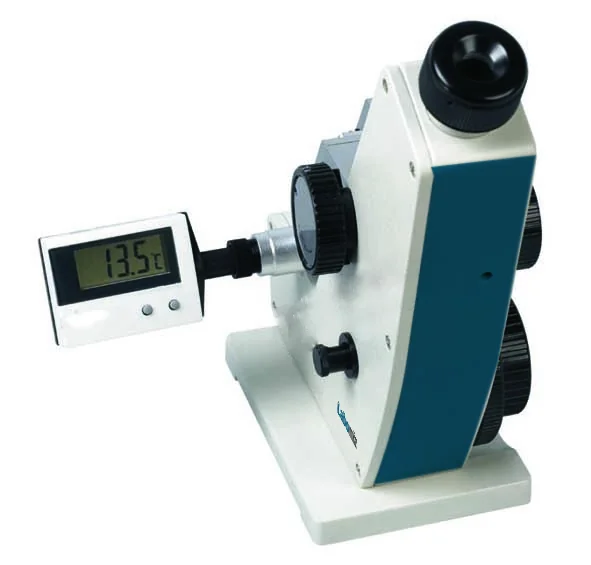

Abbe refractometer MABBE-1B
Model: MABBE-1B · Category: Refractometers
Abbe refractometer MABBE-1B is a microprocessor controlled benchtop unit. The modulated system employs rapid and accurate measurement of refractive index, average dispersion and partial dispersion. The automated temperature correction promotes accurate result delivery.
Specifications
| Measuring range | Refractive index: 1.3000 nD ~ 1.7000 nD Brix: 0 % ~ 95 % |
|---|---|
| Magnification of telescope objective | 2 X |
| Magnification of reading objective | 22 X |
| Dimensions | 240 × 200 × 390 mm |
| Weight | 4.5 kg |
Features
| Digital LCD screen for visual monitoring of set parameters |
| Thermostatic control |
| Automated measuring system |
| Facilitates data storage |
| RS232 and USB communication interface |
| Anti-corrosive structural unit |
Applications
Used for measuring the refractive index of cane sugar, pharmaceutical products, beverages, petroleum products, food, chemicals, etc.
