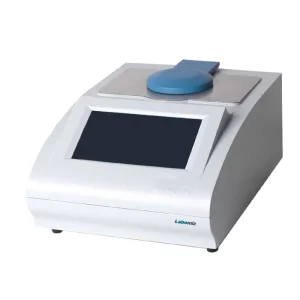

Abbe refractometer MABBE-3A
Model: MABBE-3A · Category: Refractometers
Abbe refractometer MABBE-3A is a microprocessor controlled benchtop unit. The modulated system employs rapid and accurate measurement of refractive index, average dispersion and partial dispersion. The automated temperature correction promotes accurate result delivery.
Specifications
| Measuring range | Refractive index: 1.30000 nD ~ 1.70000 nD Brix: 0 % ~ 100 % |
|---|---|
| Measuring accuracy | Refractive index: ± 0.0002 % Brix: ± 0.1 % |
| Temperature range | 0 °C ~ 50 °C |
| Thermostatic control | RT ± 10 °C |
| Measuring resolution | Refractive index: ± 0.0002 nD Brix: ± 0.1 % |
| Dimensions | 345 × 245 × 165 mm |
| Weight | 3.5 kg |
Features
| Digital LCD touch screen for visual monitoring and operational accessibility |
| Thermostatic control |
| Automated optical index-plate reading |
| Automated measuring system |
| Facilitates data storage |
| RS232 and USB communication interface |
| Anti-corrosive structural unit |
Applications
Used for measuring the refractive index of cane sugar, pharmaceutical products, beverages, petroleum products, food, chemicals, etc.
