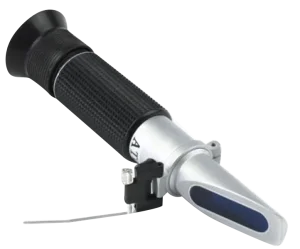

Fluids Refractometer MFLUR-1A
Model: MFLUR-1A · Category: Refractometers
Fluids Refractometer MFLUR-1A is equipped with automatic temperature compensation(ATC) that adjusts itself to correct temperature discrepancies during usage. Antifreeze, battery and cleaning fluids are detected. It features vivid and sharp reticle chart for easy and comfortable reading. Use ambient light and no batteries are needed.
Specifications
| Measurement Range | Ethylene Glycol:
-50°C ~ 0°C Propylene Glycol: -50°C ~ 0°C Battery Fluids : 1.100 ~ 1.400 sg |
|---|---|
| Minimum division | 1°C 1°C 0.01sg |
| Accuracy | ± 1 °C ± 1 °C ± 0.01 sg |
| Length | 200 mm |
| Weight | 165 g |
Features
| Manual calibration (mini-screw driver provided) |
| Aluminum construction(Heavy-duty and lightweight) |
| Easy to focus and calibrate |
| Cushioned with soft & comfortable non-slip rubber |
| Extremely easy-to-use and calibrate |
Applications
| No. | Item |
|---|---|
| 1 | Used to test the concentration of ethylene glycol or propylene glycol in antifreeze liquids |
