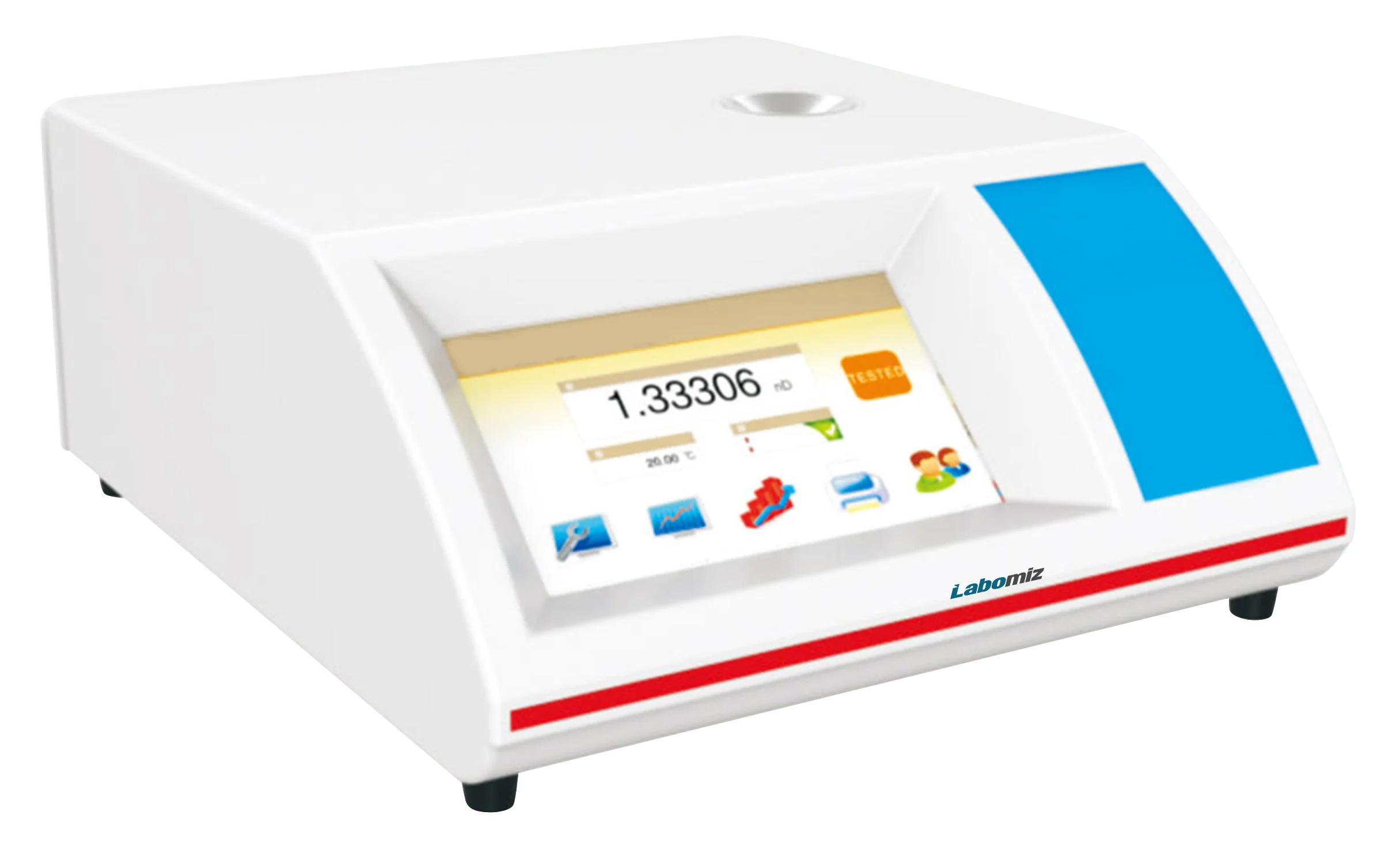

Refractometer MREF-1B
Model: MREF-1B · Category: Refractometers
Refractometer MREF-1B is a table top device for the measurement of refraction index. It is equipped with high level sapphire prism and CCD photosensitive sensors for precise refraction and high speed signal collection. The front panel consists of the FTF touch screen for ease of visual and operational accessibility during the process of melting point determination.
Specifications
| Measuring range | 1.3000 Nd ~ 1.7000 Nd |
|---|---|
| Stability of temperature control | ± 0.03 ℃ |
| Temperature control | Built-in semiconductor |
| Temperature control range | 5 ℃ ~ 65 ℃ |
| Sugar range (brix degrees) | 0 ~ 100 % |
| Sugar accuracy (brix degrees) | ± 0.1 % |
| Fine degrees | ± 0.0002 |
| Light source | LED light source |
| Wave length | 589 nm |
| Edge mirror | Sapphire level |
| Samples pool | Stainless steel |
| Test method | CCD linear photosensitive |
| Display | FTF color touch screen |
| Data interface | USB RS232 |
| Power | 220 V 50 Hz |
| Dimensions | 430 × 380 × 300 mm |
| Weight | 4 kg |
Features
| Temperature control range is 5 ? ~ 65 ? |
| Stability of temperature control is ± 0.03 ? |
| High performance sapphire prism for precise refraction |
| High resolution CCD photosensitive components for high speed signal collection |
| Semiconductor based temperature control system |
| FTF Touch screen for ease of operation and visual monitoring |
| Reliable and stable accessibility |
Applications
Used in petroleum industries, pharmaceutical industries, food industries, chemical industries, sugar industries, university and analytical laboratories, relevant scientific research units, etc.
