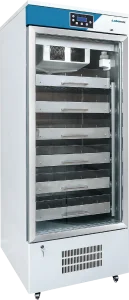

Blood bank refrigerator MBLBR-1E
Model: MBLBR-1E · Category: Refrigerators

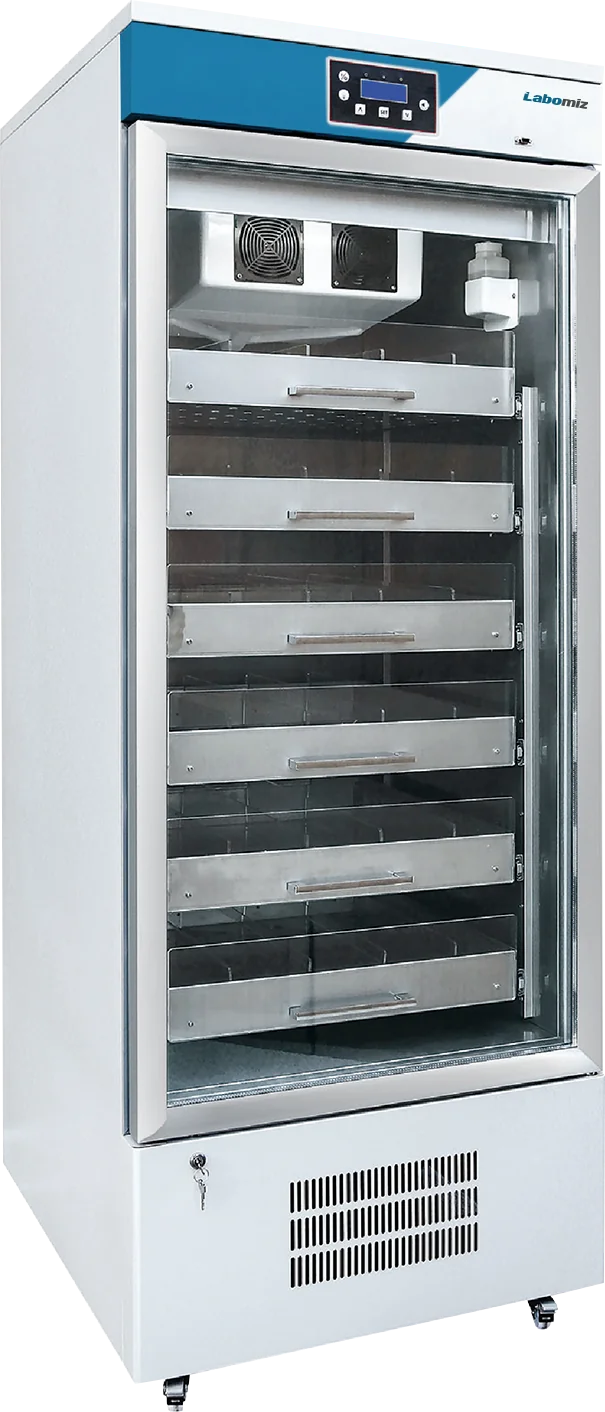

Blood bank refrigerator MBLBR-1E is a micro-processor controlled upright single glass door refrigerator. Forced-air cooling causes uniform air circulation for optimized airflow. Stainless steel shelved platform with plexi-glass cover promotes organized storage allowing direct visual access of blood bags. Automated defrost cycles facilitate frost-free storage interiors. Double-glazed insulation with magnetic gasket ensures low energy consumption. System alarms include temperature limits, door ajar, low voltage and power off conditions.
Specifications
| Storage capacity | 300 bags |
|---|---|
| Cr-Ni drawers | 6 |
| Exterior dimensions | 820 × 765 × 2000 mm |
| Interior dimensions | 685 × 690 × 1350 mm |
| Temperature range | 2 °C to 8 °C ; set at 4 °C |
| Storage volume | 663 L |
| Sensitivity | 0.1 °C |
| Temperature sensor (RTD) | PT 100 |
| Memory | 30 days |
| Mobility | 4 casters |
| Power supply | 195 V ~ 230 V / 50 Hz |
| Weight | 225 kg |
Features
| Storage capacity : 300 bags CFC-free rapid cooling technology Real-time temperature trends display Variable temperature range : 2 °C to 8 °C Digital control panel for temperature monitoring and alarms Interior chamber LED lighting Temperature log memory for review Automated background charging on plug-in Dual probe temperature sensing Network accessibility via USB interface |
Applications
Used in medical blood banks, blood transfusion centers, medical research facilities for controlled temperature storage to reliably store and preserve blood at low temperatures without tampering.
Optional Modules
| Module No | Module Name |
|---|---|
| ATP-10 | Graphical Thermal Printer |
