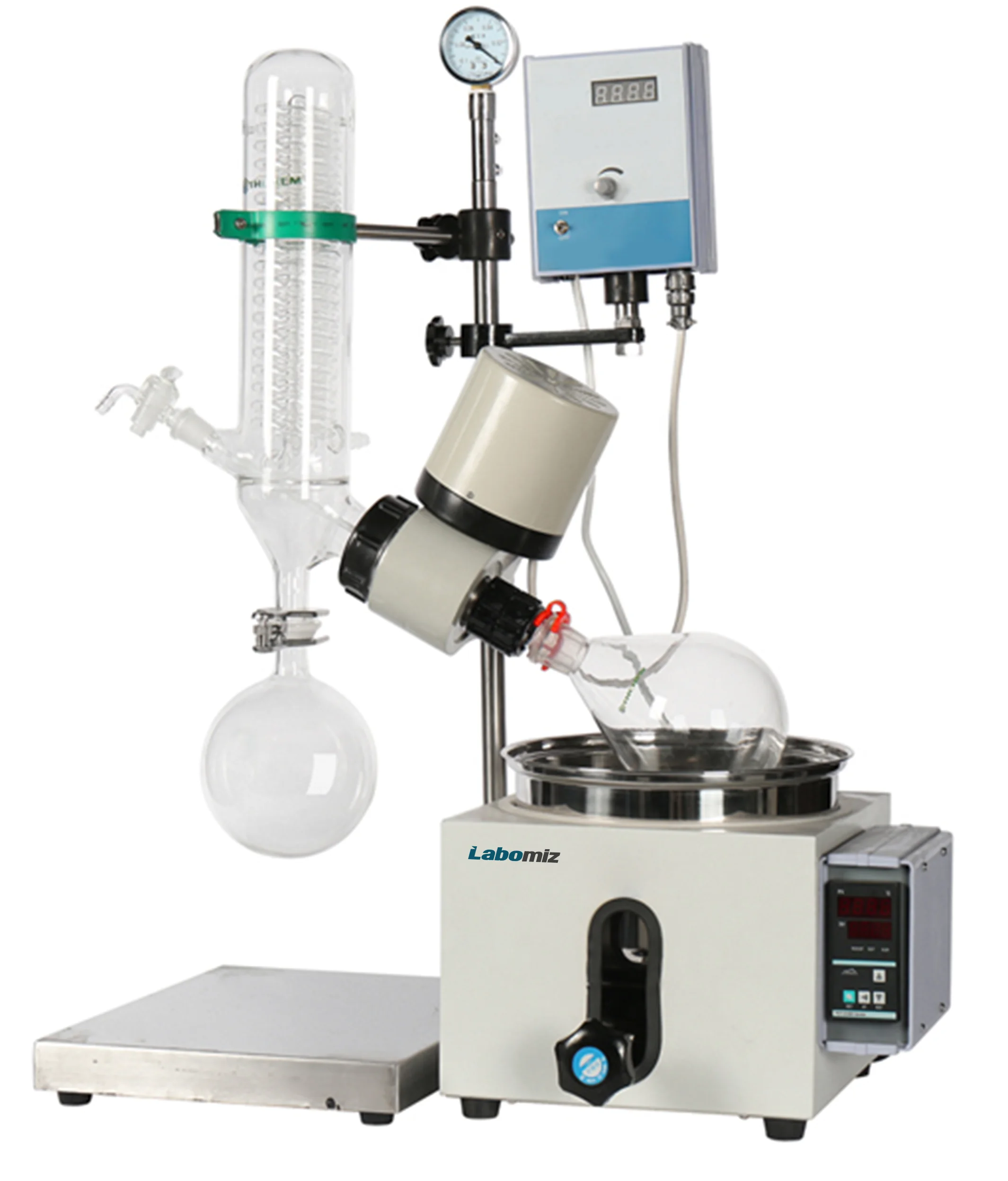

Hand lift rotary evaporator MHRE-1C
Model: MHRE-1C · Category: Rotary Evaporators
Hand lift rotary evaporator MHRE-1C is equipped with a 5 L evaporating flask.It is a modular, PTFE and Viton double sealed rotary evaporators. It consists of a PID temperature controller that assures accurate temperature control. Features a large condensing area for high efficiency condensing. Safety features such as over temperature and fuse protections are available. It includes supporting equipment such as the circulating chiller and vacuum pump.
Specifications
| Evaporation flask | 5 L |
|---|---|
| Receiving flask | 3 L |
| Flask rotation speed | 0 rpm ̴ 120 rpm |
| Motor power | 40 W |
| Vacuum degree | < 399.9 pa |
| Heating power | 1.5 kW |
| Water bath temperature | RT ̴ 180 °C |
| Oil bath temperature | RT ̴ 180 °C |
| Voltage | 220 V / 110 V |
Features
| Double layer cooling coils for improving condenser’s performance Modular design |
| PTFE and Viton double sealing |
| Hand lift helps to adjust the ascending or descending of water/ oil bath |
| Controller for adjusting the rotation speed with digital display |
| Large condensing area for high efficiency condensing |
| High quality stainless steel main neck |
Applications
| No. | Item |
|---|---|
| 1 | Used for the distillation, evaporation of heat labile material’s condensation, crystallization, separation and recovery. |
