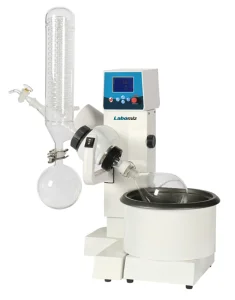

Motor lift rotary evaporator MLRE-1B
Model: MLRE-1B · Category: Rotary Evaporators
Motor lift rotary evaporator MLRE-1B is equipped with a 3 L evaporating flask. It consists of a PID temperature controller that assures accurate temperature control. Features a flask rotation speed of 0 rpm to 199 rpm. Vertical with dual-spiral glass tubing condenser. Safety features such as over temperature and fuse protections are available.
Specifications
| Evaporating flask | 3 L |
|---|---|
| Receiving flask | 2 L |
| Flask rotating speed | 0 rpm ̴ 199 rpm |
| Condensate area | 0.12m² |
| Motor power | 60 W |
| Heating power | 2 kW |
| Vacuum degree | < 399.9 pa |
| Water bath | RT ̴ 180 °C |
| Oil bath | RT ̴ 180 °C |
| Water bath size | Φ250 × 130 mm |
| Water bath power | 2 kW |
| Voltage | 220 V / 110 V |
Features
| Motor lift is easy to operate, moves up and down slowly and easy to lock |
| LCD display for visual monitoring of speed |
| Vibration - free operation |
| Double seal of PTFE and Viton ensures high vacuum |
| Material is corrosion resistant |
| Large condensing area for high efficiency condensing |
| Condensate liquid is ethanol |
| High quality stainless steel main rack |
Applications
| No. | Item |
|---|---|
| 1 | Used for the distillation, evaporation of heat labile material’s condensation, crystallization, separation and recovery. |
