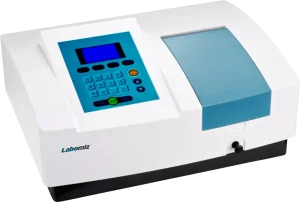

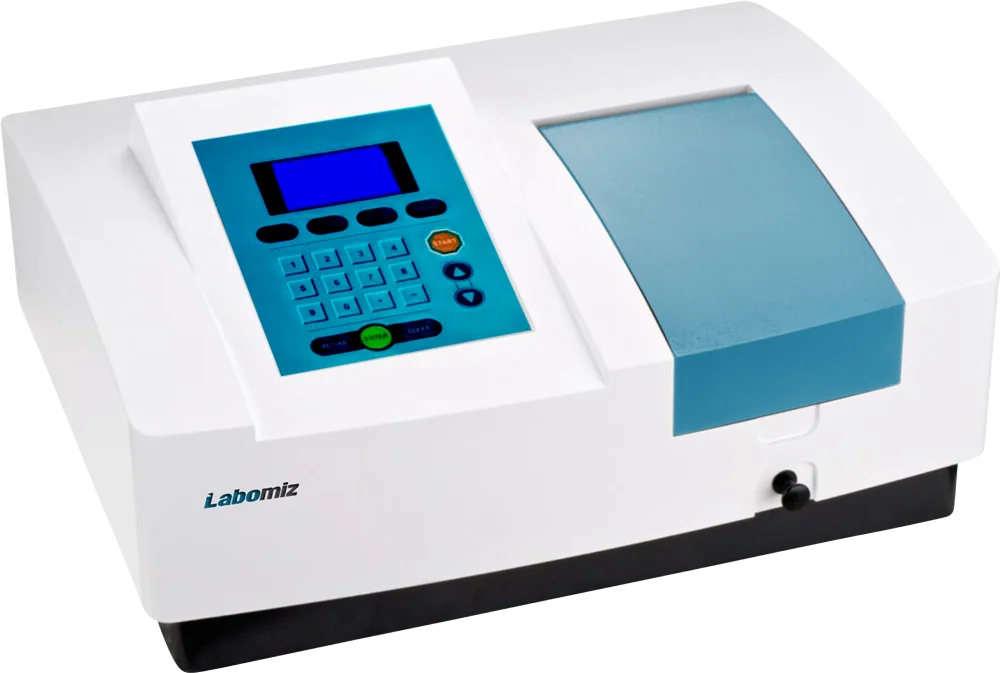

Scanning UV-Visible Spectrophotometer MSSP-1A
Model: MSSP-1A · Category: Spectrophotometer
Scanning UV-Visible Spectrophotometer MSSP-1A is a microprocessor based light intensity measuring unit with wavelength range 190 nm ~ 1100 nm.It is equipped with fault diagnosis function with automatic wavelength setting ensures high precision and stability. Integrated with RS-232 serial port enables output to be connected to printer or computer.
Specifications
| Optical system | Achromatic Czerny-Turner (1200 L/mm grating) |
|---|---|
| Wavelength range | 190 nm ~ 1100 nm |
| Spectral bandwidth | 2 nm |
| Wavelength accuracy | ± 1 nm |
| Wavelength repeatability | 0.2 nm |
| Wavelength setting | Auto |
| Display | LCD |
| Detector | Silicon photodiode |
| Stray light | 0.2 % T at (220 nm , 360 nm) |
| Transmittance accuracy | ± 0.5 % T |
| Transmittance repeatability | 0.2 % T |
| Transmittance ratio | 0.0 to 200 % T |
| Absorbance range | -0.3 to 3.0 A |
| Concentration display range | 0 to 1999 |
| Stability | ± 0.002 A/hr at 500 nm |
| Light source | Tungsten and Deuterium |
| Power | AC 110 V,50 Hz AC 220 V,60 Hz |
| Dimensions ( L x W x H ) | 700 x 580 x 340 mm |
| Weight | 20 kg |
Features
| Microcomputer system for storage of standard data and curve |
| RS-232 serial port for output connection |
| LCD display measuring value and curve |
| Automatic wavelength calibration |
| Diffraction grating 1200 L/mm ensures precise spectral results |
Applications
Used in biochemistry, biochemical, pharmaceutical, environmental protections, food, chemical, universities and quality control for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
