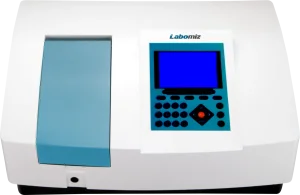

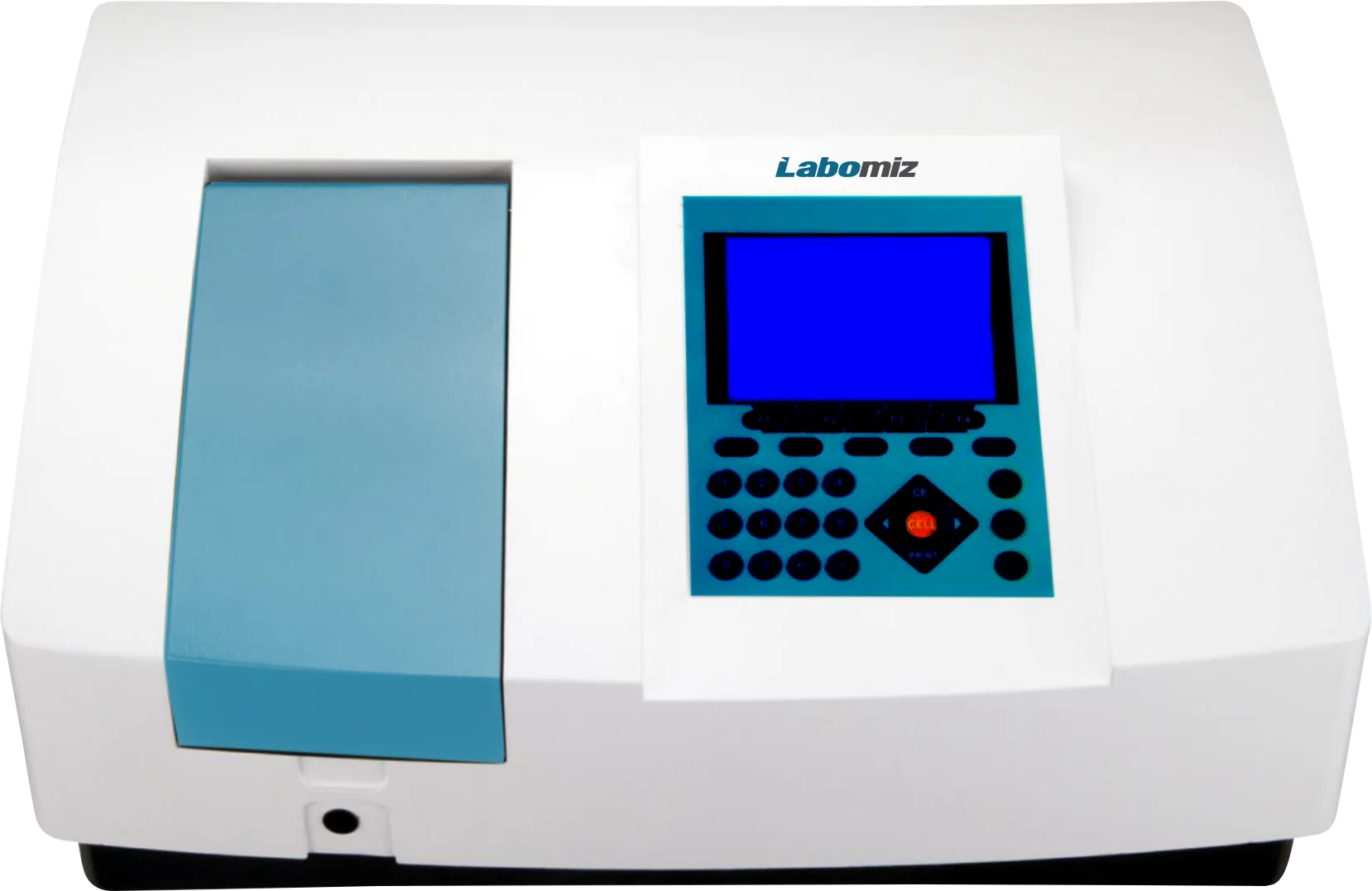

Scanning UV-Visible Spectrophotometer MSSP-1B
Model: MSSP-1B · Category: Spectrophotometer
Scanning UV-Visible Spectrophotometer MSSP-1B is a dual beam light intensity measuring unit with wavelength range 190 nm ~ 1100 nm ensuring accuracy and reliability of sample processing.It is equipped with Czerny-Turner monochromator ensures linearity and ultra-low stray light. Integrated with USB and RS-232 serial port enables output to be connected to computer or printer.
Specifications
| Optical system | Achromatic Czerny-Turner (1200 L/mm grating) |
|---|---|
| Wavelength range | 190 nm ~ 1100 nm |
| Spectral bandwidth | 1.8 nm |
| Wavelength accuracy | ± 0.3 nm |
| Wavelength repeatability | 0.1 nm |
| Wavelength setting | Auto |
| Display | 128 x 64 LCD |
| Detector | Silicon photodiode |
| Stray light | ≤ 0.05 % T at (220 nm ,360 nm ,Nal ) |
| Transmittance accuracy | ± 0.3 % T |
| Transmittance repeatability | ≤ 0.1 % T |
| Transmittance ratio | 0.0 to 200 % T |
| Absorbance range | -0.3 to 3.0 A |
| Baseline flatness | ± 0.001 Abs |
| Concentration display range | 0 to 1999 |
| Light source | Tungsten and Deuterium |
| Power | AC 110 V,50 Hz AC 220 V,60 Hz |
| Dimensions ( L x W x H ) | 570 x 420 x 220 mm |
| Weight | 12 kg |
Features
| LCD display measuring value and curve |
| Large sample chamber - upto 100 mm cuvette |
| Automatic wavelength calibration |
| Large storage capacity (data and standard curve) |
| Diffraction grating 1200 L/mm ensures precise spectral results |
| Advanced function of data detection, spectrum scanning, mass storage of testing documents |
| Photometric measurement-absorbance, transmittance and concentration |
| Quantitative measurement: photometric analysis, quantitative analysis, kinetic testing, multi wavelength test, DNA/protein testing, spectral derivative. |
| Spectral scanning: Multi-sample full band scanning |
| Output - USB , RS-232 serial port printer |
Applications
Used in biochemistry, biochemical, pharmaceutical, environmental protections, food, chemical, universities and quality control for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
