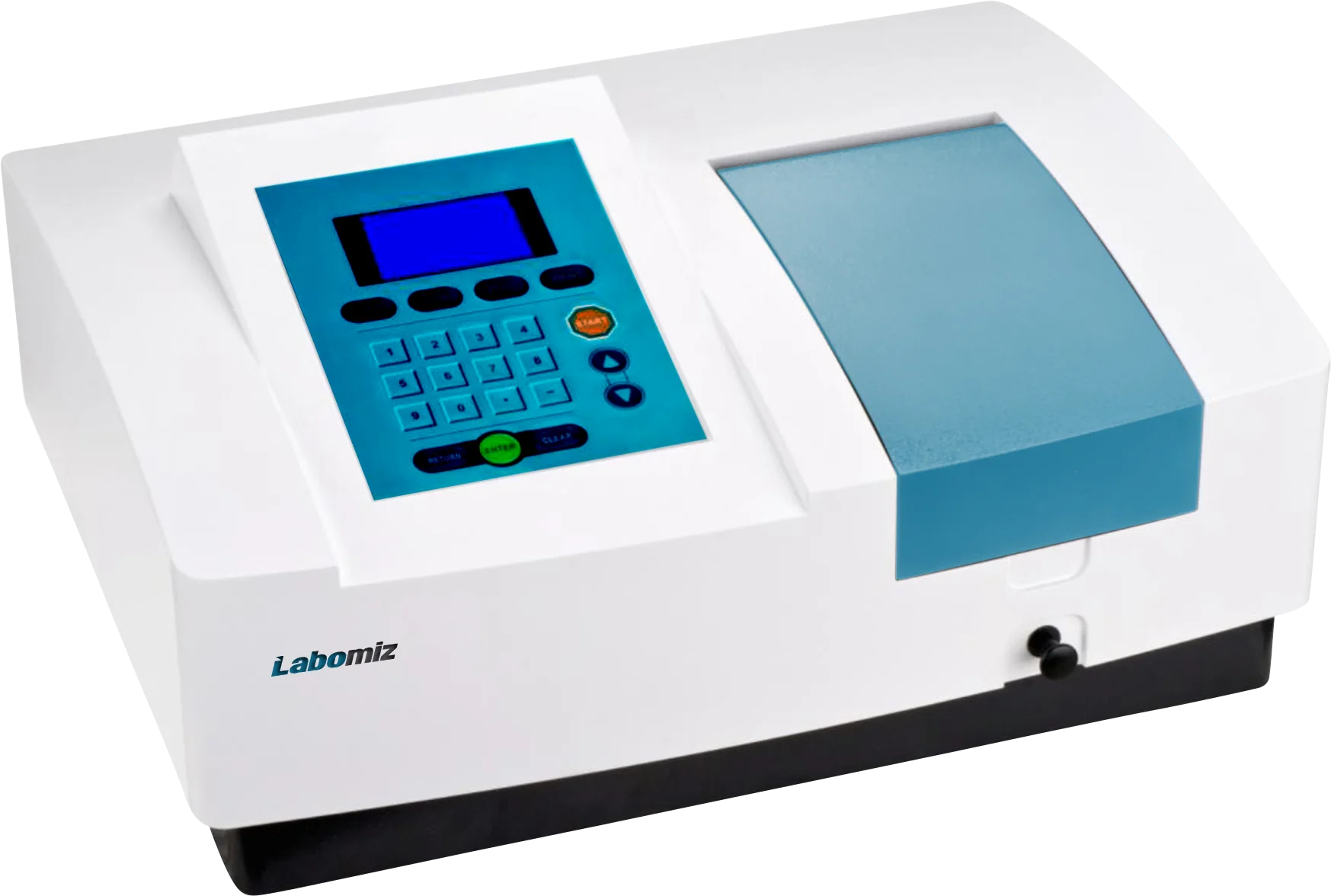

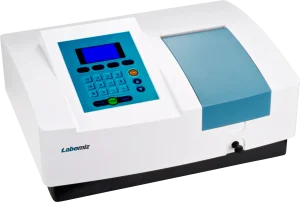

UV-Visible Spectrophotometer MUVS-2A
Model: MUVS-2A · Category: Spectrophotometer
UV-Visible Spectrophotometer MUVS-2A is a microprocessor based light intensity measuring unit with wavelength range 190 nm ~ 1100 nm. It is equipped with fault diagnosis function with automatic wavelength setting ensures high precision and stability. Integrated with RS-232 serial port enables output to be connected to printer or computer.
Specifications
| Optical system | Achromatic Czerny-Turner (1200 L/mm grating) |
|---|---|
| Wavelength range | 190 nm ~ 1100 nm |
| Spectral bandwidth | 4 nm |
| Wavelength accuracy | ± 2 nm |
| Wavelength repeatability | 0.5 nm |
| Wavelength setting | Auto |
| Stray light | 0.3 % T at (220 nm , 360 nm) |
| Display | 128 x 64 LCD |
| Detector | Silicon photodiode |
| Light source | Deuterium lamp; Tungsten lamp |
| Power | AC 110 V,50 Hz AC 220 V,60 Hz |
| Dimensions | 520 x 450 x 300 mm |
| Gross weight | 11 kg |
Features
| Microcomputer system for storage of standard data and curve |
| Diffraction grating 1200 L/mm ensures precise spectral results |
| USB,RS-232 serial port for output connection |
| LCD display measuring value and curve |
| Automatic wavelength calibration |
| Quantitative measurement: photometric analysis, quantitative analysis, kinetic testing, multi wavelength test, DNA/protein testing, spectral scanning. |
Applications
Used in biochemistry, biochemical, pharmaceutical, environmental protections, food, chemical, universities and quality control for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
