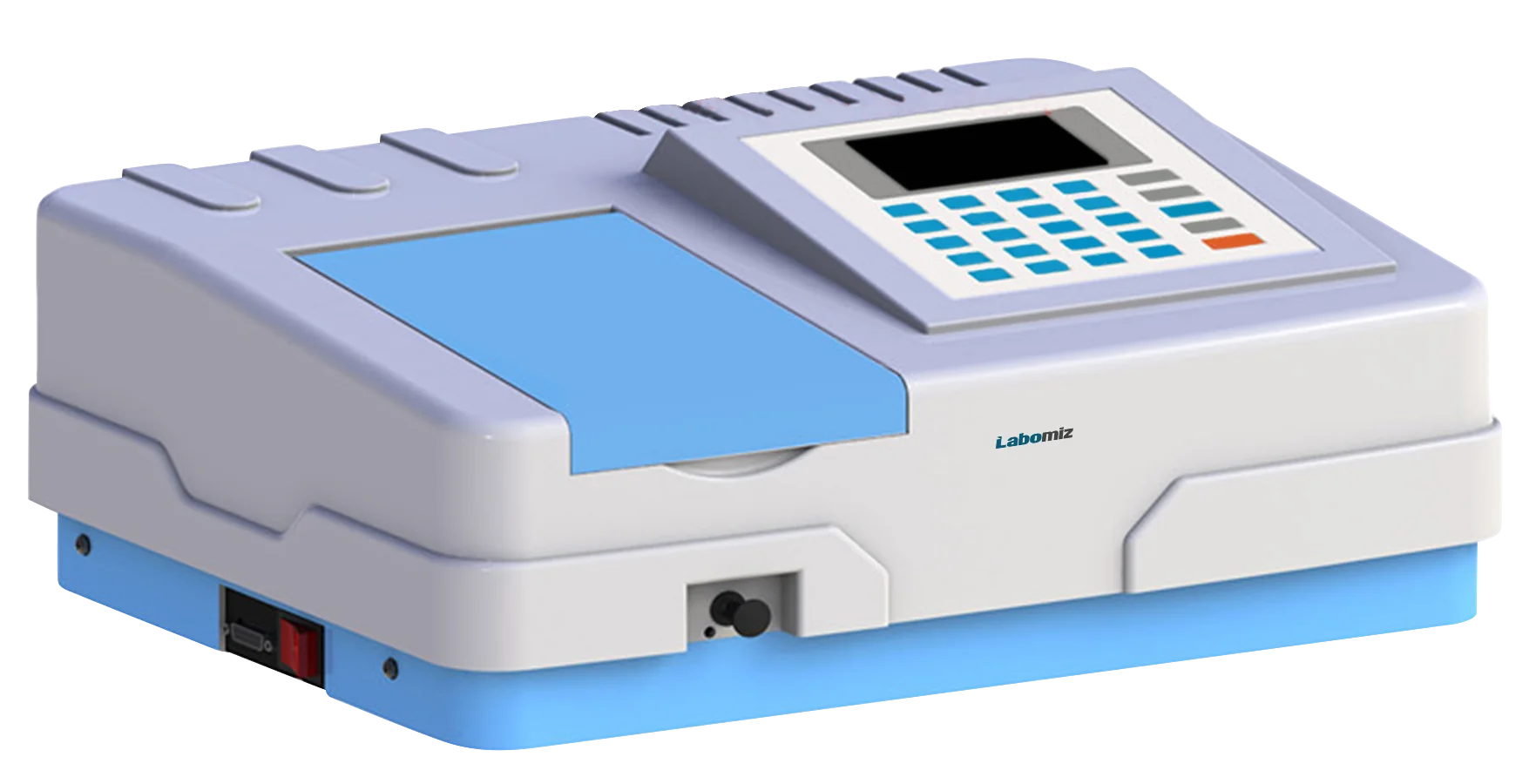

Click the image to view it full size
UV-Visible Spectrophotometers MUVS-1B
Model: MUVS-1B · Category: Spectrophotometer
UV-Visible Spectrophotometer MUVS-1B is a light intensity measuring unit with deuterium lamp for prevention of ozone inhalation. The SiO2 coated optical mirror enables uninterrupted propagation of light and reduces contamination through external sources. Characterization of PC software expands its scope of applications.
Specifications
| Optical system | Single beam (1200 lines/mm grating) |
|---|---|
| Wavelength range | 190 nm ~ 1100 nm |
| Spectral bandwidth | 4 nm |
| Wavelength accuracy | ± 0.5 nm |
| Wavelength repeatability | ≤ 0.3 nm |
| Photometric accuracy | ± 0.002 A (0 Abs ~ 0.5 Abs) 0.004 A (0.5 Abs ~ 1.0 Abs) ± 0.5% T (0% T ~ 100% T) |
| Photometric repeatability | 0.001 Abs (0 Abs ~ 0.5 Abs) 0.002 Abs (0.5 Abs ~ 1.0 Abs) ≤ 0.2% T (0% T ~ 100 %) |
| Stray light | ≤ 0.05% T at 360 nm, 220 nm |
| Stability | ± 0.001 A/h at 500 nm |
| Baseline flatness | ± 0.002 A |
| Noise | ± 0.0005 A |
| Display | TFT LCD |
| Photometric mode | T.A.C.E |
| Photometric range | 0% T ~ 200% T -0.301 Abs ~ 3.0 Abs |
| Detector | Silicon photodiode |
| Light source | Deuterium lamp; Tungsten lamp |
| Input | Membrane keypad |
| Output | USB print and data output PC Connection |
| Power | AC 110 V ±10%; 50 Hz AC 220 V ±10%; 60 Hz |
| Dimensions | 620 × 500 × 370 mm |
| Gross weight | 18 kg |
Features
| Double wavelength and triple wavelength test feature |
| Photometric detection by fixed wavelength |
| Multi-Wavelength configuration for measurement of transmittance and absorbance |
| Testing and storage capacity of 240 data in each curve |
| Efficient time course scanning and reaction rate calculations |
| Three modal standard curve |
Applications
Used for concentration measurement, photometric analysis, impurities detection in the fields of biology, biochemical, pharmaceutical, environmental science, food, chemical, genetic, quality control, etc.
Standard Accessories
| Sr. No. | Name of the accessory | Quantity |
|---|---|---|
| 1 | 10 mm glass cuvette | 4 units |
| 2 | 10 mm quartz cuvette | 2 units |
Optional Accessories
| Sr. No. | Name of the accessory |
|---|---|
| 1 | Single cell holder |
| 2 | General cell holder |
| 3 | Test tube holder |
| 4 | Solid sample holder |
| 5 | Deuterium lamp |
| 6 | Halogen lamp |
| 7 | 4 place cell holder |
| 8 | Printer |
| 9 | Water jacketed cell holder ( 4 cells capacity ) |
| 10 | Reflection accessory 5° |
| 11 | Auto 8 cell changer |
| 12 | Micro cell holder |
| 13 | Water jacketed cell holder ( 1 cell capacity ) |
| 14 | Constant temperature |
