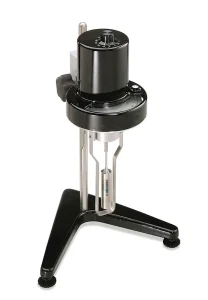

Dial Reading Viscometer MRV-1B
Model: MRV-1B · Category: Viscometers
Dial reading viscometer MRV-1B is analog unit which measures the viscosity of different fluids. Oblique rack connected to base acts as a lifting system. Different rotors are available for varying measurement requirement. Analogue display shows torque ( % ) later manually converted to centipoise.
Specifications
| Measurement range | 1 mPa.s ⁓ 2 × 106 mPa.s |
|---|---|
| Rotor speed | 0.3 rpm, 0.6 rpm, 1.5 rpm, 6 rpm, 12 rpm, 30 rpm, 60 rpm |
| Accuracy ( Newton liquid ) | ± 5 % |
| Display mode | Dial |
| Power supply | 220 V ± 10 V 50 Hz |
| Standard rotors | 4 types |
| Dimensions | 400 × 370 × 150 mm |
| Weight | 3.5 kg |
Features
| Bench-top unit |
| Electronic driven rotor |
| Analogue display |
| Maintain constant temperature |
| Rapid and reliable operation |
Applications
Used to measure the absolute viscosity of Newton and apparent viscosity Non-newton fluids. Measures the viscosity of petroleum, resins, paints, inks, sizing agent, cosmetics, creams and pharmaceuticals fluids.
