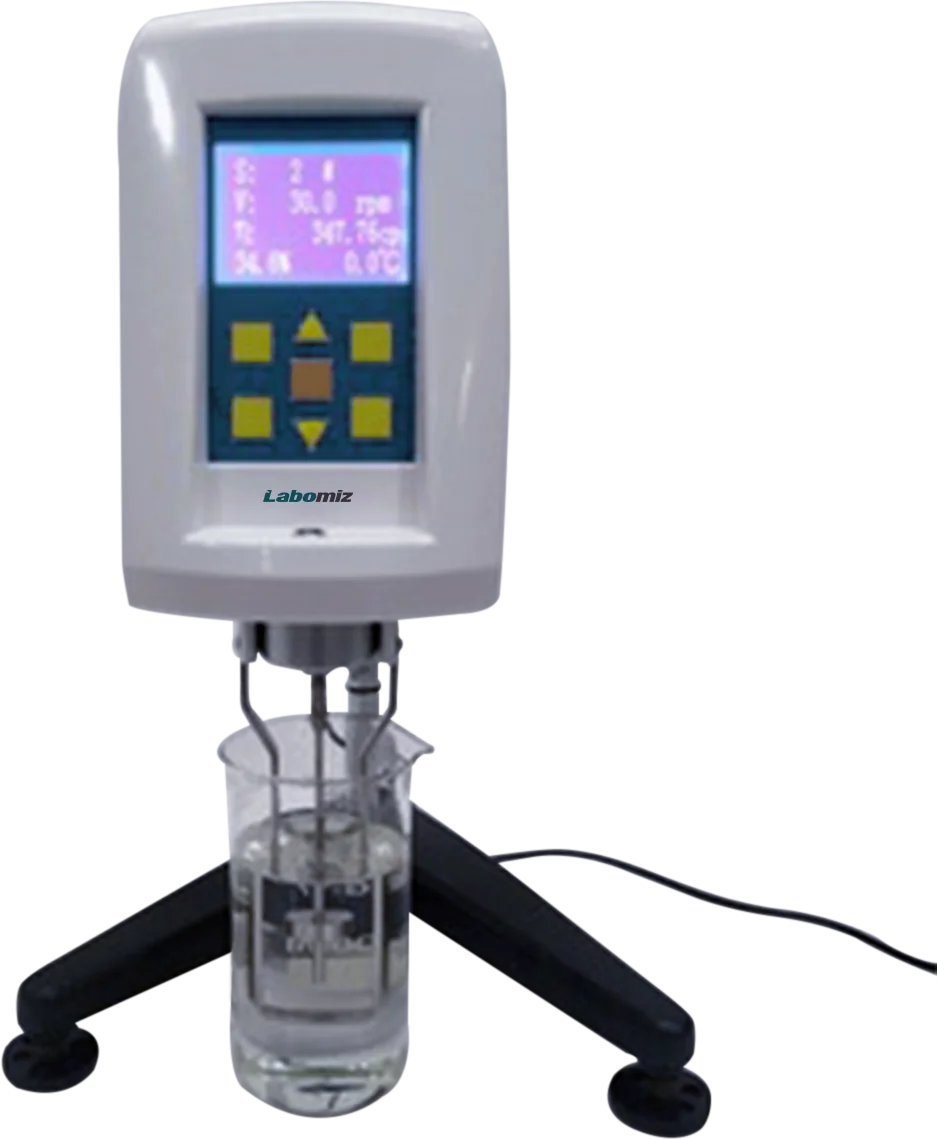

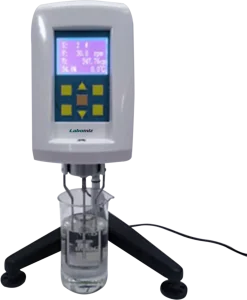

Digital viscometer MDV-1B
Model: MDV-1B · Category: Viscometers
Digital viscometer MDV-1B is a bench top, microprocessor controlled unit. Integrated with stepping motor for stable rotation. Digital screen automatically displays measured values including 2 digits after decimal point. Timer is set to test viscosity of non-Newtonian fluids. Provision to connect micro-printer to print various data for interpretation.
Specifications
| Measurement range | 1 mPa.s ⁓ 2 × 106 mPa.s |
|---|---|
| Rotor speed | 0.3 rpm, 0.6 rpm, 1.5 rpm, 3 rpm, 6 rpm, 12 rpm, 30 rpm, 60 rpm |
| Sample consumption | 250 ml ⁓ 400 ml |
| Rotors | 4 types |
| Accuracy | ≤ ± 2.0 % F.S |
| Repeatability | ± 5 % |
| Power supply | 110 V ⁓ 230 V 50 Hz / 60 Hz |
| Dimensions | 400 × 200 × 430 mm |
| Weight | 4.8 kg |
Features
| Adjustable horizontal display |
| Gearless driven ( Noiseless operation ) |
| Blue screen digital LCD display |
| Screen isplays viscosity, speed, torque, rotor number etc. |
| Printing interface : micro-printer |
Applications
Used to measure the viscosity of grease, paint, coatings, drugs, food, cosmetics, adhesive, etc. It also measures liquid viscosity resistance and absolute viscosity.
