High Temperature Digital Viscometer MHTV-1B
Model: MHTV-1B · Category: Viscometers

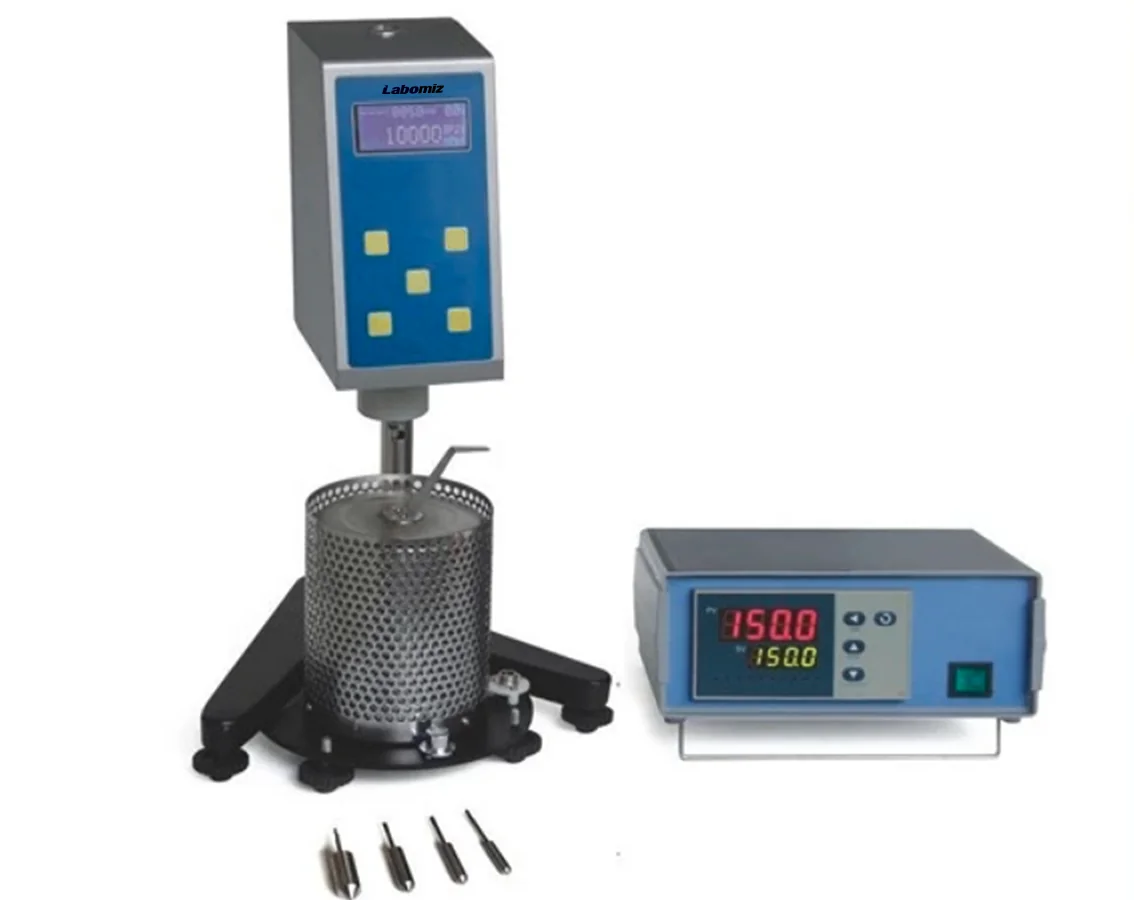

High temperature digital viscometer MHTV-1B is a bench-top unit designed to test the viscosity of substance which is liquid at high temperature .Integrated with stepper motor for accurate speed control and stable operation. Screen displays viscosity, speed, torque ( % ), rotor number and temperature values.
Specifications
| Measurement range | 50 mPa.s ~ 2×105 mPa.s |
|---|---|
| Speed range | 5 rpm, 10 rpm, 20 rpm, 50 rpm, 100 rpm |
| Sample capacity | 10 ml ⁓ 20 ml |
| Accuracy | ±1 % ( FS ) Newton liquid |
| Temperature Range ( Maximum ) | 250 °C |
| Temperature accuracy | ± 0.1 °C |
| Relative error | ± 0.5 % |
| Power | 220 V; 50 Hz |
Features
| Digital LCD screen displays measurement data |
| Manual measuring method |
| Four standard rotors |
| Embedded with high temperature furnace ( Even heating ) |
| Data acquisition, analysis and mapping software ( optional ) |
| Temperature controller displays actual and set temperature |
Applications
Used to measure the viscosity of asphalt ( bitumen ), hot melt adhesive, polyethylene, wax and etc. which is solid at room temperature.
