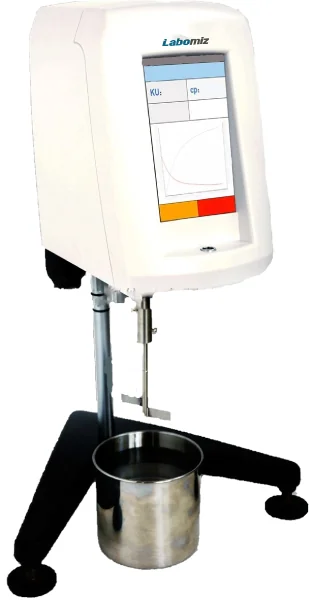

Krebs-Stormer Viscometer MSTV-1A
Model: MSTV-1A · Category: Viscometers
Krebs-Stormer viscometer MSTV-1A is a bench-top unit featuring thirty set of test procedures to perform varying tests. Two interfaces to connect to the computer and printer. Computer controlled precise auto-calibration. Display and stores the measured data including sample KU ( Krebs unit), gm, cP value, Temperature, Torque and date, etc. Conforms to International ASTM D562.
Specifications
| Speed | 200 rpm ± 0.1 rpm |
|---|---|
| Measurement range | 40.2 KU ⁓ 141.0 KU 32 g ⁓ 1099 g 27 cP ⁓ 5250 cP |
| Time | 1 min ⁓ 99 hrs. |
| Display | 5 inch LCD color touch screen |
| Measurement accuracy | ± 1 % |
| Measurement repeatability | ± 0.5 % |
| Storage | 30 set data |
| Power supply | 110 V / 60 Hz 220 V / 50 Hz |
| Dimensions | 300 × 300 × 450 mm |
| Weight | 4 kg |
Features
| Aluminum alloy case ( Resistance to corrosion ) |
| Real-time viscosity curves for visual interpretation |
| Storage of measured data and curves |
| Serial port to connect computer |
| Parallel port for printer |
| Safety alarm for measuring rang warning |
Applications
Used to measure the viscosity of liquid such as paint, resin, ink and coating fluids. Widely used for industrial and research applications.
Optional Accessories
| No. | Item |
|---|---|
| 1 | Constant temperature circulating bath |
| 2 | Temperature probe |
| 3 | Viscosity standard liquid |
| 4 | Software |
| 5 | Printer |
